產品名稱:
美制ORFS外螺紋/英管外螺紋O型圈直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

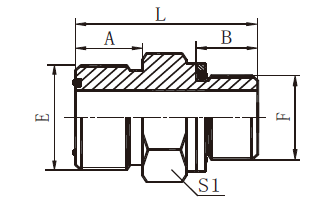

訂貨號 | 螺紋 | O形圈 | 尺寸 | |||||||
E | F | E端 | F端 | A | B | L | S1 | |||
AF5-04 | 9/16"X18 | G1/4"X19 | O011 | O111 | 10 | 10 | 29 | 19 | ||
AF5-04-06 | 9/16"X18 | G3/8"X19 | O011 | O113 | 10 | 11.5 | 31 | 22 | ||
AF5-06 | 11/16"X16 | G3/8"X19 | O012 | O113 | 11.2 | 11.5 | 32.5 | 22 | ||
AF5-06-04 | 11/16'X16 | G1/4"X19 | O012 | O111 | 11.2 | 10 | 31 | 19 | ||
AF5-06-08 | 11/16"X16 | G1/2"X14 | O012 | O115 | 11.2 | 14 | 36.5 | 27 | ||
AF5-08 | 13/16"X16 | G1/2"X14 | O014 | O115 | 13 | 14 | 38.5 | 27 | ||
AF5-08-06 | 13/16"X16 | G3/8"X19 | O014 | O113 | 13 | 11.5 | 34.3 | 22 | ||
AF5-10-08 | 1"x14 | G1/2"x14 | O016 | O115 | 15.5 | 14 | 41 | 27 | ||
AF5-10-12 | 1"X14 | G3/4"X14 | O016 | O119 | 15.5 | 15.5 | 44 | 32 | ||
AF5-12-08 | 1.3/16"X12 | G1/2"X14 | O018 | O115 | 17 | 14 | 44 | 32 | ||
AF5-12 | 1.3/16"x12 | G3/4"x14 | O018 | O119 | 17 | 15.5 | 45.6 | 32 | ||
AF5-16 | 1.7/16"X12 | G1"X11 | O021 | O217 | 17.5 | 18 | 49.5 | 41 |
