產品名稱:
英錐管內螺紋90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

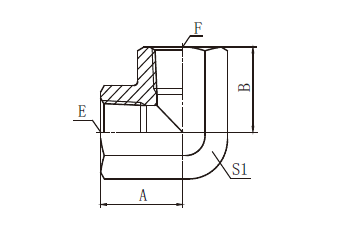

訂貨號 | 螺 紋 | 尺 寸 | |||||||||||
E | F | A | B | S1 | |||||||||
G4-04/9 | Rc1/4"X19 | Rc1/4"X19 | 22.5 | 22.5 | 19 | ||||||||
G4-06/9 | Rc3/8"X19 | Rc3/8"X19 | 26 | 26 | 24 | ||||||||
G4-08/9 | Rc1/2"X14 | Rc1/2"X14 | 31 | 31 | 27 | ||||||||
G4-12/9 | Rc3/4"X14 | Rc3/4"X14 | 34 | 34 | 33 | ||||||||
G4-16/9 | Rc1"X11 | Rc1"X11 | 42 | 42 | 41 | ||||||||
G4-20/9 | Rc1.1/4"X11 | Rc1.1/4"X11 | 48 | 48 | 50 | ||||||||
G4-24/9 | Rc1.1/2"X11 | Rc1.1/2"X11 | 53 | 53 | 60 | ||||||||
G4-32/9 | Rc2"X11 | Rc2"X11 | 62 | 62 | 70 |
