產品名稱：
美制JIC外螺紋/英錐管外螺紋 45°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

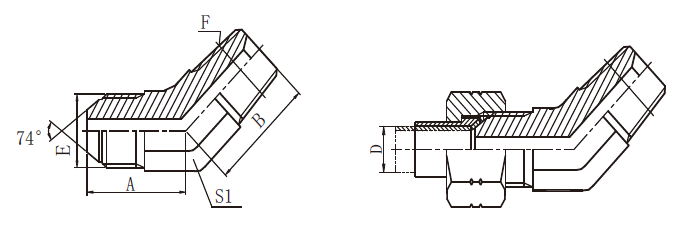

| 訂貨號 | 螺 紋 | 尺 寸 | ||||||
| E | F | A | B | S1 | ||||
| AJ4-04/4 | 7/16"X20 | R1/4"X19 | 22.3 | 21 | 14 | |||
| AJ4-04-06/4 | 7/16"X20 | R3/8"X19 | 22.5 | 23 | 16 | |||
| AJ4-06-04/4 | 9/16"X18 | R1/4"X19 | 22.8 | 21 | 14 | |||
| AJ4-06/4 | 9/16"X18 | R3/8"X19 | 23 | 23 | 16 | |||
| AJ4-08-06/4 | 3/4"X16 | R3/8"X19 | 26.8 | 24 | 19 | |||
| AJ4-08/4 | 3/4"X16 | R1/2"X14 | 28 | 29.5 | 22 | |||
| AJ4-12-08/4 | 1.1/16"X12 | R1/2"X14 | 35.5 | 30 | 27 | |||
| AJ4-12/4 | 1.1/16"X12 | R3/4"X14 | 35.5 | 30.5 | 27 | |||
| AJ4-12-16/4 | 1.1/16"X12 | R1"X11 | 37.5 | 38 | 33 | |||
| AJ4-16-12/4 | 1.5/16"X12 | R3/4"X14 | 38.5 | 32.5 | 33 | |||
| AJ4-16/4 | 1.5/16"X12 | R1"X11 | 38.5 | 38 | 33 | |||
| AJ4-20/4 | 1.5/8"X12 | R1.1/4"X11 | 43 | 43 | 41 | |||
| AJ4-24/4 | 1.7/8"X12 | R1.1/2"X11 | 49 | 47.5 | 48 | |||
| AJ4-32/4 | 2.1/2"X12 | R2"X11 | 58 | 50 | 63 | |||
注：螺母及襯套需另行訂貨，配用螺母及襯套分別選用SJN、SJS。
