產品名稱：
美制JIC外螺紋/英錐管外螺紋直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

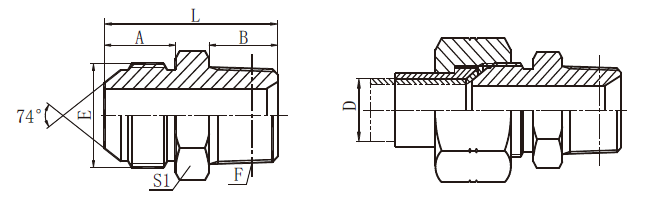

| 訂貨號 | 螺 紋 | 尺 寸 | ||||||
| E | F | A | B | L | S1 | |||
| AJ4-04-02 | 7/16"X20 | R1/8"X28 | 14 | 10 | 30 | 12 | ||
| AJ4-04 | 7/16"X20 | R1/4"X19 | 14 | 14.5 | 34.5 | 14 | ||
| AJ4-04-06 | 7/16"X20 | R3/8"X19 | 14 | 15 | 35 | 17 | ||
| AJ4-05-04 | 1/2"X20 | R1/4"X19 | 14 | 14.5 | 34 | 14 | ||
| AJ4-05-06 | 1/2"X20 | R3/8"X19 | 14 | 15 | 35 | 19 | ||
| AJ4-06-04 | 9/16"X18 | R1/4"X19 | 14.1 | 14.5 | 34 | 17 | ||
| AJ4-06 | 9/16"X18 | R3/8"X19 | 14.1 | 15 | 34 | 17 | ||
| AJ4-06-08 | 9/16"X18 | R1/2"X14 | 14.1 | 20 | 41 | 22 | ||
| AJ4-08-06 | 3/4"X16 | R3/8"X19 | 16.7 | 15 | 39 | 22 | ||
| AJ4-08 | 3/4"X16 | R1/2"X14 | 16.7 | 20 | 44.5 | 22 | ||
| AJ4-08-12 | 3/4"X16 | R3/4"X14 | 16.7 | 20 | 46 | 30 | ||
| AJ4-10-08 | 7/8"X14 | R1/2"X14 | 19.3 | 20 | 46.5 | 24 | ||
| AJ4-10-12 | 7/8"X14 | R3/4"X14 | 19.3 | 20 | 48.5 | 30 | ||
| AJ4-12-08 | 1.1/16"X12 | R1/2"X14 | 21.9 | 20 | 51 | 30 | ||
| AJ4-12 | 1.1/16"X12 | R3/4"X14 | 21.9 | 20 | 51 | 30 | ||
| AJ4-12-16 | 1.1/16"X12 | R1"X11 | 21.9 | 25.5 | 57.5 | 36 | ||
| AJ4-16-12 | 1.5/16"X12 | R3/4"X14 | 23.1 | 20 | 53 | 36 | ||
| AJ4-16 | 1.5/16"X12 | R1"X11 | 23.1 | 25.5 | 59 | 36 | ||
| AJ4-16-20 | 1.5/16"X12 | R1.1/4"X11 | 23.1 | 26.5 | 61.5 | 46 | ||
| AJ4-20 | 1.5/8"X12 | R1.1/4"X11 | 24.3 | 26.5 | 63 | 46 | ||
| AJ4-24-20 | 1.7/8"X12 | R1.1/4"X11 | 27.5 | 26.5 | 67.5 | 50 | ||
| AJ4-24 | 1.7/8"X12 | R1.1/2"X11 | 27.5 | 26.5 | 69.5 | 50 | ||
| AJ4-24-32 | 1.7/8"X12 | R2"X11 | 27.5 | 30 | 74.5 | 65 | ||
| AJ4-32-24 | 2.1/2"X12 | R1.1/2"X11 | 33.9 | 26.5 | 77.5 | 65 | ||
| AJ4-32 | 2.1/2"X12 | R2"X11 | 33.9 | 30 | 80 | 65 | ||
注：螺母及襯套需另行訂貨，配用螺母及襯套分別選用SJN、SJS。
