產品名稱:
英管外螺紋/英管內螺紋60°外錐直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

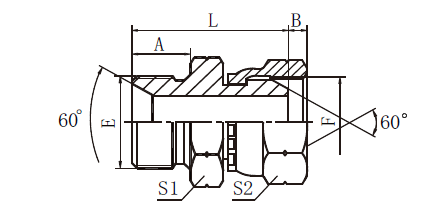

訂貨號 | 螺 紋 | 尺 寸 | ||||||||||
E | F | A | B | L | S1 | S2 | ||||||
B3-04 | G1/4"X19 | G1/4"X19 | 12 | 5.5 | 29 | 19 | 19 | |||||
B3-04-08 | G1/4"X19 | G1/2"X14 | 12 | 7.5 | 32 | 19 | 27 | |||||
B3-06 | G3/8"X19 | G3/8"X19 | 13.5 | 6.3 | 34 | 22 | 22 | |||||
B3-06-08 | G3/8"X19 | G1/2"X14 | 13.5 | 7.5 | 35.5 | 22 | 27 | |||||
B3-08 | G1/2"X14 | G1/2"X14 | 16 | 7.5 | 40 | 27 | 27 | |||||
B3-08-06 | G1/2"X14 | G3/8"X19 | 16 | 6.3 | 38.5 | 27 | 22 | |||||
B3-08-12 | G1/2"X14 | G3/4"X14 | 16 | 10.9 | 41 | 27 | 32 | |||||
B3-12 | G3/4"X14 | G3/4"X14 | 18.5 | 10.9 | 44.5 | 32 | 32 | |||||
B3-12-16 | G3/4"X14 | G1"X11 | 18.5 | 11.7 | 46 | 32 | 41 | |||||
B3-16 | G1"X11 | G1"X11 | 20.5 | 11.7 | 50 | 41 | 41 | |||||
B3-16-12 | G1"X11 | G3/4"X14 | 20.5 | 10.9 | 49 | 41 | 32 | |||||
B3-16-20 | G1"X11 | G1.1/4"X11 | 20.5 | 11 | 53 | 41 | 50 | |||||
B3-20 | G1.1/4"X11 | G1.1/4"X11 | 20.5 | 11 | 55 | 50 | 50 | |||||
B3-24 | G1.1/2"X11 | G1.1/2"X11 | 23 | 13 | 58 | 55 | 55 | |||||
B3-32 | G2"X11 | G2"X11 | 25.5 | 16 | 63.5 | 70 | 70 |
