產品名稱：
英管外螺紋/美制JIC外螺紋
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

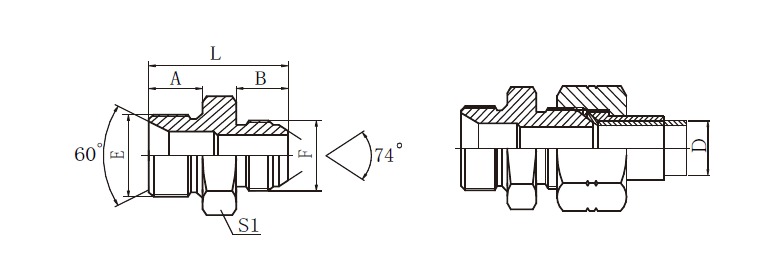

| 訂貨號 | 螺 紋 | 尺 寸 | ||||||
| E | F | A | B | L | S1 | |||
| A3J-04 | G1/4"X19 | 7/16"X20 | 12 | 14 | 32 | 19 | ||
| A3J-04-06 | G1/4"X19 | 9/16"X18 | 12 | 14.1 | 32 | 19 | ||
| A3J-04-08 | G1/4"X19 | 3/4"X16 | 12 | 16.7 | 36.5 | 22 | ||
| A3J-06 | G3/8"X19 | 9/16"X18 | 13.5 | 14.1 | 35.5 | 22 | ||
| A3J-06-04 | G3/8"X19 | 7/16"X20 | 13.5 | 14 | 35.5 | 22 | ||
| A3J-06-08 | G3/8"X19 | 3/4"X16 | 13.5 | 16.7 | 38.5 | 22 | ||
| A3J-06-12 | G3/8"X19 | 1.1/16"X12 | 13.5 | 21.9 | 45 | 30 | ||
| A3J-08 | G1/2"X14 | 3/4"X16 | 16 | 16.7 | 43 | 27 | ||
| A3J-08-04 | G1/2"X14 | 7/16"X20 | 16 | 14 | 40 | 27 | ||
| A3J-08-06 | G1/2"X14 | 9/16"X18 | 16 | 14.1 | 40 | 27 | ||
| A3J-08-10 | G1/2"X14 | 7/8"X14 | 16 | 19.3 | 45.5 | 27 | ||
| A3J-08-12 | G1/2"X14 | 1.1/16"X12 | 16 | 21.9 | 48 | 30 | ||
| A3J-12 | G3/4"X14 | 1.1/16"X12 | 18.5 | 21.9 | 51.5 | 32 | ||
| A3J-12-06 | G3/4"X14 | 9/16"X18 | 18.5 | 14.1 | 43.5 | 32 | ||
| A3J-12-08 | G3/4"X14 | 3/4"X16 | 18.5 | 16.7 | 46.5 | 32 | ||
| A3J-12-10 | G3/4"X14 | 7/8"X14 | 18.5 | 19.3 | 49 | 32 | ||
| A3J-12-16 | G3/4"X14 | 1.5/16"X12 | 18.5 | 23.1 | 52.5 | 34 | ||
| A3J-12-20 | G3/4"X14 | 1.5/8"X12 | 18.5 | 24.3 | 55.5 | 46 | ||
| A3J-16 | G1"X11 | 1.5/16"X12 | 20.5 | 23.1 | 57 | 41 | ||
| A3J-16-08 | G1"X11 | 3/4"X16 | 20.5 | 16.7 | 50 | 41 | ||
| A3J-16-10 | G1"X11 | 7/8"X14 | 20.5 | 19.3 | 53 | 41 | ||
| A3J-16-12 | G1"X11 | 1.1/16"X12 | 20.5 | 21.9 | 55.5 | 41 | ||
| A3J-16-20 | G1"X11 | 1.5/8"X12 | 20.5 | 24.3 | 58 | 46 | ||
| A3J-20 | G1.1/4"X11 | 1.5/8"X12 | 20.5 | 24.3 | 62 | 50 | ||
| A3J-20-12 | G1.1/4"X11 | 1.1/16"X12 | 20.5 | 21.9 | 57.5 | 50 | ||
| A3J-20-16 | G1.1/4"X11 | 1.5/16"X12 | 20.5 | 23.1 | 60.5 | 50 | ||
| A3J-20-24 | G1.1/4"X11 | 1.7/8"X12 | 20.5 | 27.5 | 63 | 50 | ||
| A3J-24-16 | G1.1/2"X11 | 1.5/16"X12 | 23 | 23.1 | 61 | 55 | ||
| A3J-24-20 | G1.1/2"X11 | 1.5/8"X12 | 23 | 24.3 | 62.5 | 55 | ||
| A3J-24 | G1.1/2"X11 | 1.7/8"X12 | 23 | 27.5 | 67.5 | 55 | ||
| A3J-32 | G2"X11 | 2.1/2"X12 | 25.5 | 33.9 | 77.5 | 70 | ||
