產品名稱：
英管外螺紋60°/公制外螺紋
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

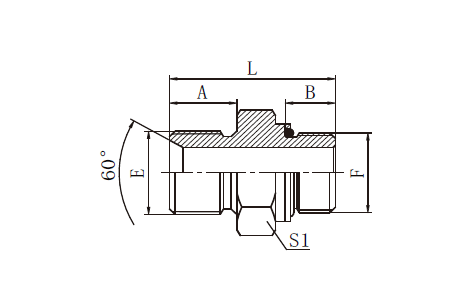

| 訂貨號 | 螺 紋 | 尺 寸 | ||||||
| E | F | A | B | S1 | L | |||
| A37-04-14 | G1/4"X19 | M14X1.5 | 12 | 11 | 19 | 31.5 | ||
| A37-04-16 | G1/4"X19 | M16X1.5 | 12 | 11.5 | 22 | 31.5 | ||
| A37-06-14 | G3/8"X19 | M14X1.5 | 13.5 | 11 | 22 | 35 | ||
| A37-06-16 | G3/8"X19 | M16X1.5 | 13.5 | 11.5 | 22 | 33 | ||
| A37-06-18 | G3/8"X19 | M18X1.5 | 13.5 | 12.5 | 24 | 36.5 | ||
| A37-08-18 | G1/2"X14 | M18X1.5 | 16 | 12.5 | 27 | 41 | ||
| A37-08-22 | G1/2"X14 | M22X1.5 | 16 | 13 | 27 | 41.5 | ||
| A37-12-22 | G3/4"X14 | M22X1.5 | 18.5 | 13 | 32 | 45 | ||
| A37-12-27 | G3/4"X14 | M27X2 | 18.5 | 16 | 32 | 45.5 | ||
| A37-16-27 | G1"X11 | M27X2 | 20.5 | 16 | 41 | 49 | ||
| A37-16-33 | G1"X11 | M33X2 | 20.5 | 16 | 41 | 49.5 | ||
| A37-20-42 | G1.1/4"X11 | M42X2 | 20.5 | 16 | 50 | 51.5 | ||
| A37-24-48 | G1.1/2"X11 | M48X2 | 23 | 17.5 | 55 | 55.5 | ||
