產品名稱：

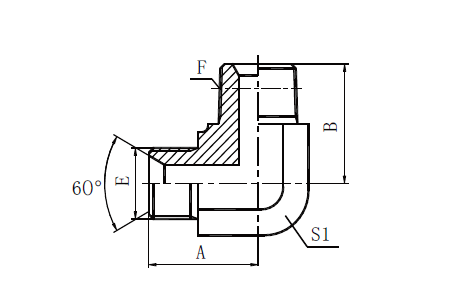

英管外螺紋60°內錐/英錐管外螺紋 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述
| 訂貨號 | 螺 紋 | 尺 寸 | |||||
| E | F | A | B | S1 | |||
| A34-04/9 | G1/4"X19 | R1/4"X19 | 24.5 | 25.5 | 14 | ||
| A34-04-02/9 | G1/4"X19 | R1/8"X28 | 25 | 23.5 | 14 | ||
| A34-04-06/9 | G1/4"X19 | R3/8"X19 | 25 | 28.5 | 16 | ||
| A34-06/9 | G3/8"X19 | R3/8"X19 | 27.5 | 28.5 | 16 | ||
| A34-06-04/9 | G3/8"X19 | R1/4"X19 | 27.5 | 26.5 | 16 | ||
| A34-06-08/9 | G3/8"X19 | R1/2"X14 | 31 | 36 | 22 | ||
| A34-08/9 | G1/2"X14 | R1/2"X14 | 34.5 | 36 | 22 | ||
| A34-08-06/9 | G1/2"X14 | R3/8"X19 | 34.5 | 32.5 | 22 | ||
| A34-08-12/9 | G1/2"X14 | R3/4"X14 | 37.5 | 43.5 | 27 | ||
| A34-12/9 | G3/4"X14 | R3/4"X14 | 40 | 43 | 27 | ||
| A34-12-08/9 | G3/4"X14 | R1/2"X14 | 40 | 39.5 | 27 | ||
| A34-12-16/9 | G3/4"X14 | R1"X11 | 43.5 | 50 | 33 | ||
| A34-16/9 | G1"X11 | R1"X11 | 46 | 50 | 33 | ||
| A34-16-12/9 | G1"X11 | R3/4"X14 | 46 | 47.5 | 33 | ||
| A34-20/9 | G1.1/4"X11 | R1.1/4"X11 | 52 | 59 | 41 | ||
| A34-20-16/9 | G1.1/4"X11 | R1"X11 | 52 | 56.5 | 41 | ||
| A34-20-24/9 | G1.1/4"X11 | R1.1/2"X11 | 54.5 | 62.5 | 48 | ||
| A34-24/9 | G1.1/2"X11 | R1.1/2"X11 | 57.5 | 62 | 48 | ||
| A34-24-20/9 | G1.1/2"X11 | R1.1/4"X11 | 57.5 | 61 | 48 | ||
| A34-32/9 | G2"X11 | R2"X11 | 67 | 75 | 63 | ||
