產品名稱:

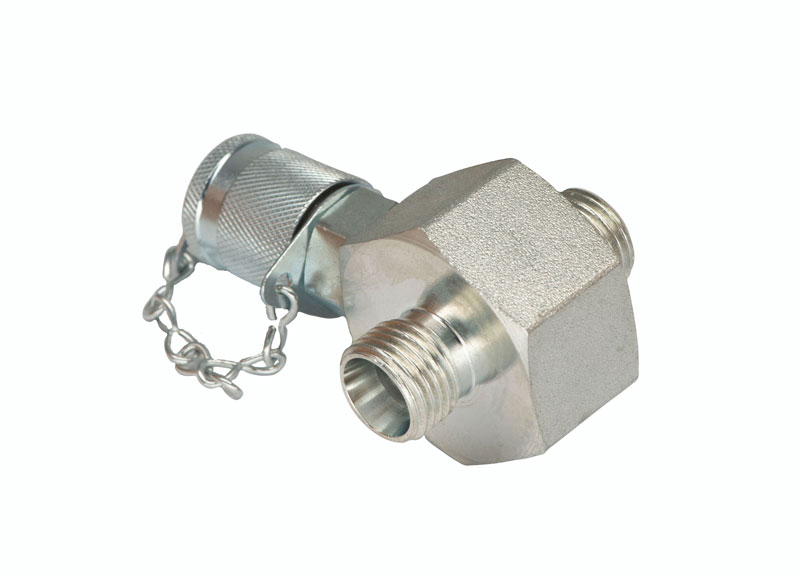

測壓接頭 適配螺紋M16X2
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

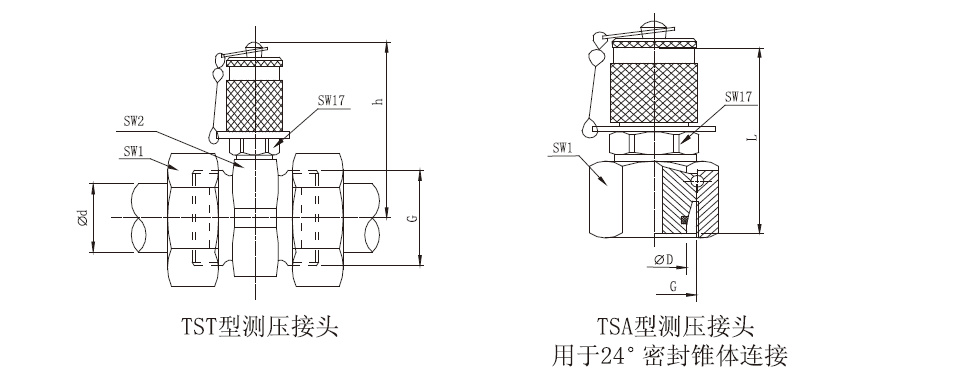

系列 | PN | 接管外徑? | 螺紋G | h | L | SW1 | SW2 | 訂貨號 | |||
TST型 | TSA型 | ||||||||||
L | 315 | 6 | M12X1.5 | 49 | 50.5 | 14 | 24 | TST-0-12L-N+R | TSA-0-12L | ||
8 | M14X1.5 | 49 | 50.5 | 17 | 24 | TST-0-14L-N+R | TSA-0-14L | ||||
10 | M16X1.5 | 49 | 51.5 | 19 | 24 | TST-0-16L-N+R | TSA-0-16L | ||||
12 | M18X1.5 | 49.5 | 52.5 | 22 | 24 | TST-0-18L-N+R | TSA-0-18L | ||||
15 | M22X1.5 | 50.5 | 58 | 27 | 27 | TST-0-22L-N+R | TSA-0-22L | ||||
18 | M26X1.5 | 53 | 56.5 | 32 | 32 | TST-0-26L-N+R | TSA-0-26L | ||||
160 | 22 | M30X2 | 53 | 57.5 | 36 | 32 | TST-0-30L-N+R | TSA-0-30L | |||
28 | M36X2 | 57.5 | 62 | 41 | 41 | TST-0-36L-N+R | TSA-0-36L | ||||
35 | M45X2 | 60 | 67 | 50 | 46 | TST-0-45L-N+R | TSA-0-45L | ||||
42 | M52X2 | 64.5 | 68 | 60 | 55 | TST-0-52L-N+R | TSA-0-52L | ||||
S | 630 | 6 | M14X1.5 | 49 | 48.5 | 17 | 24 | TST-0-14S-N+R | TSA-0-14S | ||
8 | M16X1.5 | 49 | 51.5 | 19 | 24 | TST-0-16S-N+R | TSA-0-16S | ||||
10 | M18X1.5 | 49 | 51.5 | 22 | 24 | TST-0-18S-N+R | TSA-0-18S | ||||
12 | M20X1.5 | 49 | 52.5 | 24 | 24 | TST-0-20S-N+R | TSA-0-20S | ||||
14 | M22X1.5 | 49 | 56.5 | 27 | 24 | TST-0-22S-N+R | TSA-0-22S | ||||
400 | 16 | M24X1.5 | 52 | 55 | 30 | 27 | TST-0-24S-N+R | TSA-0-24S | |||
20 | M30X2 | 53 | 61 | 36 | 32 | TST-0-30S-N+R | TSA-0-30S | ||||
25 | M36X2 | 57.5 | 63 | 46 | 41 | TST-0-36S-N+R | TSA-0-36S | ||||
30 | M42X2 | 60 | 67 | 50 | 46 | TST-0-42S-N+R | TSA-0-42S | ||||
315 | 38 | M52X2 | 64.5 | 71 | 60 | 55 | TST-0-52S-N+R | TSA-0-52S |
