產品名稱：

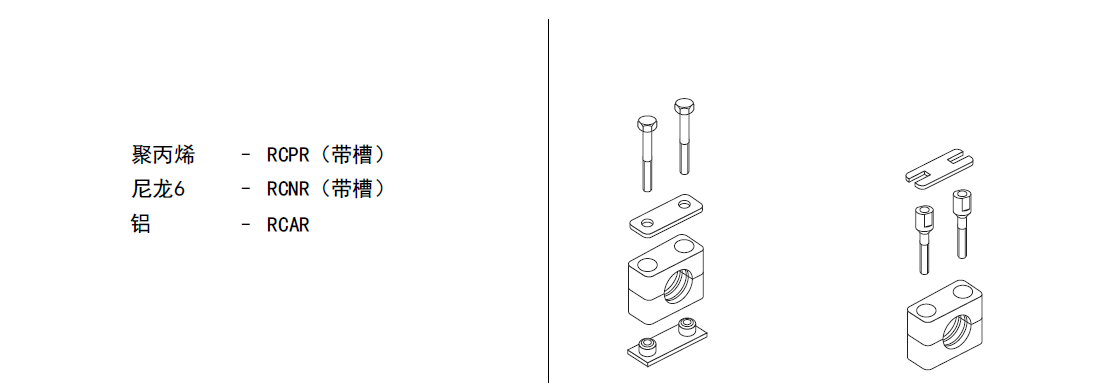

C型管夾（重系列）
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述
| 規格 | 管子外徑mm | 公稱直徑Inch | 管子外徑Inch | 訂貨號 | 訂貨號 | ||
| 5 | 70.0 | G2.1/2 G3 | 3 3.1/4 3.1/2 | RCPR1–570 | RCPR5–570 | ||
| 73.0 | RCPR1–573 | RCPR5–573 | |||||
| 75.0 | RCPR1–575 | RCPR5–575 | |||||
| 76.1 | RCPR1–576.1 | RCPR5–576.1 | |||||
| 80 | RCPR1–580 | RCPR5–580 | |||||
| 82.5 | RCPR1–582.5 | RCPR5–582.5 | |||||
| 88.9 | RCPR1–588.9 | RCPR5–588.9 | |||||
| 90.0 | RCPR1–590 | RCPR5–590 | |||||
| 6 | 90.0 | G3.1/2 G 4 | 4 4.1/4 4.1/2 5 | RCPR1–690 | RCPR5–690 | ||
| 97.0 | RCPR1–697 | RCPR5–697 | |||||
| 100.0 | RCPR1–6100 | RCPR5–6100 | |||||
| 101.6 | RCPR1–6101.6 | RCPR5–6101.6 | |||||
| 108.0 | RCPR1–6108 | RCPR5–6108 | |||||
| 114.3 | RCPR1–6114.3 | RCPR5–6114.3 | |||||
| 127.0 | RCPR1–6127 | RCPR5–6127 | |||||
| 7 | 127.0 | G5 G5.1/2 G 6 | 5 5.1/4 5.1/2 6 6.1/4 6.2/1 6.5/8 | RCPR1–7127 | RCPR5–7127 | ||
| 133.0 | RCPR1–7133 | RCPR5–7133 | |||||
| 140.0 | RCPR1–7140 | RCPR5–7140 | |||||
| 150.0 | RCPR1–7150 | RCPR5–7150 | |||||
| 152.4 | RCPR1–7152.4 | RCPR5–7152.4 | |||||
| 159.0 | RCPR1–7159 | RCPR5–7159 | |||||
| 165.1 | RCPR1–7165.1 | RCPR5–7165.1 | |||||
| 168.3 | RCPR1–7168.3 | RCPR5–7168.3 | |||||
| 8 | 168.3 | G8 | 6.5/8 7 7.5/8 8.5/8 | RCPR1–8168.3 | RCPR5–8168.3 | ||
| 177.8 | RCPR1–8177.8 | RCPR5–8177.8 | |||||
| 193.7 | RCPR1–8193.7 | RCPR5–8193.7 | |||||
| 203.0 | RCPR1–8203 | RCPR5–8203 | |||||
| 219.1 | RCPR1–8219.1 | RCPR5–8219.1 | |||||
| 220 | RCPR1–8220 | RCPR5–8220 | |||||
