產品名稱：

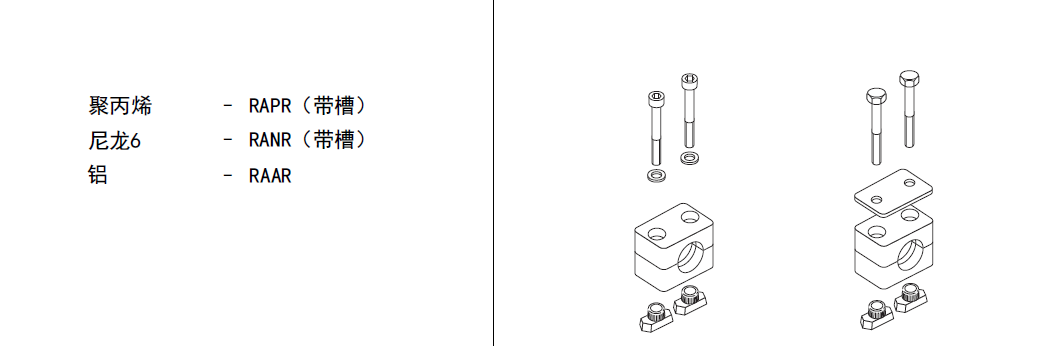

A 型管夾（輕系列）
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述
| 規格 | 管子外徑mm | 公稱直徑Inch | 管外徑Inch | 訂貨號 訂貨號 |
| 0 | 6.0 6.4 8.0 9.5 10.0 12.0 | G 1/8 | 1/4 5/16 3/8 | RAPR10–006 RAPR12–006 RAPR10–006.4 RAPR12–006.4 RAPR10–008 RAPR12–008 RAPR10–009.5 RAPR12–009.5 RAPR10–010 RAPR12–010 RAPR10–012 RAPR12–012 |
| 1 | 6.0 6.4 8.0 9.5 10.0 12.0 | G 1/8 | 1/4 5/16 3/8 | RAPR10–106 RAPR12–106 RAPR10–106.4 RAPR12–106.4 RAPR10–108 RAPR12–108 RAPR10–109.5 RAPR12–109.5 RAPR10–110 RAPR12–110 RAPR10–112 RAPR12–112 |
| 2 | 12.7 13.5 14.0 15.0 16.0 17.2 18.0 | G 1/4 G 3/8 | 1/2 5/8 | RAPR10–212.7 RAPR12–212.7 RAPR10–213.5 RAPR12–213.5 RAPR10–214 RAPR12–214 RAPR10–215 RAPR12–215 RAPR10–216 RAPR12–216 RAPR10–217.2 RAPR12–217.2 RAPR10–218 RAPR12–218 |
| 3 | 19.0 20.0 21.3 22.0 23.0 25.0 | G 1/2 | 3/4 1 | RAPR10–319 RAPR12–319 RAPR10–320 RAPR12–320 RAPR10–321.3 RAPR12–321.3 RAPR10–322 RAPR12–322 RAPR10–323 RAPR12–323 RAPR10–325 RAPR12–325 |
| 4 | 26.9 28.0 30.0 | G 3/4 | RAPR10–426.9 RAPR12–426.9 RAPR10–428 RAPR12–428 RAPR10–430 RAPR12–430 | |
| 5 | 32.0 33.7 35.0 38.0 40.0 42.0 | G 1 G 1.1/4 | 1.1/4 1.1/2 | RAPR10–532 RAPR12–532 RAPR10–533.7 RAPR12–533.7 RAPR10–535 RAPR12–535 RAPR10–538 RAPR12–538 RAPR10–540 RAPR12–540 RAPR10–542 RAPR12–542 |
| 6 | 44.5 45.0 48.0 50.0 50.8 52.0 55.0 57.0 | G 1.1/2 | 1.3/4 2 2.1/4 | RAPR10–644.5 RAPR12–644.5 RAPR10–645 RAPR12–645 RAPR10–648 RAPR12–648 RAPR10–650 RAPR12–650 RAPR10–650.8 RAPR12–650.8 RAPR10–652 RAPR12–652 RAPR10–655 RAPR12–655 RAPR10–657 RAPR12–657 |
