產品名稱：

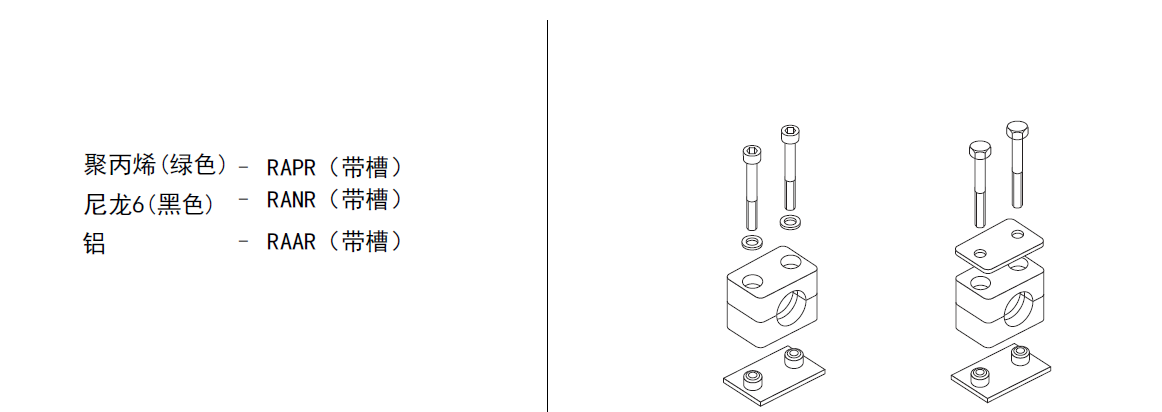

A 型管夾（輕系列）

產品系列搜索

請選擇您想要尋找的相關產品系列

產品描述


規格管外徑mm公稱直徑Inch管子外徑Inch訂貨號訂貨號
06.0G 1/8

1/4


5/16


3/8		RAPR2–006RAPR3–006
6.4RAPR2–006.4RAPR3–006.4
8.0RAPR2–008RAPR3–008
9.5RAPR2–009.5RAPR3–009.5
10.0RAPR2–010RAPR3–010
12.0RAPR2–012RAPR3–012
16.0G 1/8

1/4


5/16


3/8		RAPR2–106RAPR3–106
6.4RAPR2–106.4RAPR3–106.4
8.0RAPR2–108RAPR3–108
9.5RAPR2–109.5RAPR3–109.5
10.0RAPR2–110RAPR3–110
12.0RAPR2–112RAPR3–112
212.7

G1/4


 G 3/8

1/2


5/8

RAPR2–212.7 RAPR3–212.7
13.5 RAPR2–213.5RAPR3–213.5
14.0RAPR2–214RAPR3–214
15.0RAPR2–215RAPR3–215
16RAPR2–216
RAPR3–216
17.2RAPR2–217.2RAPR3–217.2
18.0RAPR2–218RAPR3–218
319G 1/2

3/4


1

RAPR2–319 RAPR3–319
20RAPR2–320RAPR3–320
21.3RAPR2–321.3RAPR3–321.3
22.0RAPR2–322RAPR3–322
23.0RAPR2–323 RAPR3–323
25RAPR2–325RAPR3–325
426.9G 3/4
RAPR2–426.9RAPR3–426.9
28RAPR2–428RAPR3–428
30RAPR2–430RAPR3–430
532

G 1


 G 1.1/4

1.1/4


         1.1/2

RAPR2–532RAPR3–532
33.7 RAPR2–533.7RAPR3–533.7
35.0RAPR2–535RAPR3–535
38.0RAPR2–538RAPR3–538
40.0RAPR2–540 RAPR3–540
42RAPR2–542RAPR3–542
644.5G 1.1/2

1.3/4


2


2.1/4

RAPR2–644.5
RAPR3–644.5
45RAPR2–645RAPR3–645
48.0RAPR2–648RAPR3–648
50.0RAPR2–650RAPR3–650
50.8RAPR2–650.8RAPR3–650.8
52.0RAPR2–652RAPR3–652
55.0RAPR2–655RAPR3–655
57 RAPR2–657RAPR3–657
