產品名稱：
日本英制內螺紋60°內錐面直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

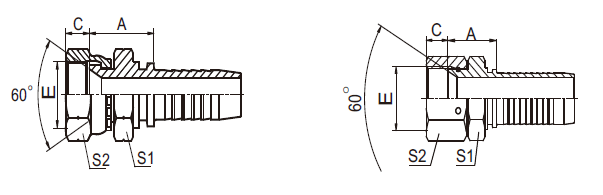

| 訂貨號 | 螺紋E | 膠 管 | 尺 寸 | ||||||||||
| 公稱內徑 | 標號 | A | C | S1 | S2 | ||||||||
| BJA-04-04 | G1/4"X19 | 6 | 4 | 21 | 8 | 19 | 19 | ||||||
| BJA-04-05 | G1/4"X19 | 8 | 5 | 21 | 8 | 19 | 19 | ||||||
| BJA-06-04 | G3/8"X19 | 6 | 4 | 23 | 9 | 22 | 22 | ||||||
| BJA-06-06 | G3/8"X19 | 10 | 6 | 23 | 9 | 22 | 22 | ||||||
| BJA-08-06 | G1/2"X14 | 10 | 6 | 28 | 12 | 27 | 27 | ||||||
| BJA-08-08 | G1/2"X14 | 12 | 8 | 26.5 | 12 | 27 | 27 | ||||||
| BJA-12-10 | G3/4"X14 | 16 | 10 | 30 | 13.5 | 32 | 32 | ||||||
| BJA-12-12 | G3/4"X14 | 20 | 12 | 30.5 | 13.5 | 32 | 32 | ||||||
| BJA-16-16 | G1"X11 | 25 | 16 | 32 | 16 | 41 | 41 | ||||||
| BJA-20-20W | G1.1/4"X11 | 32 | 20 | 43 | 18.5 | 50 | 50 | ||||||
| BJA-24-24W | G1.1/2"X11 | 40 | 24 | 43.5 | 19 | 55 | 55 | ||||||
| BJA-32-32W | G2"X11 | 50 | 32 | 46.5 | 23 | 70 | 70 | ||||||
