產品名稱:
SAE法蘭 6000 PSI 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

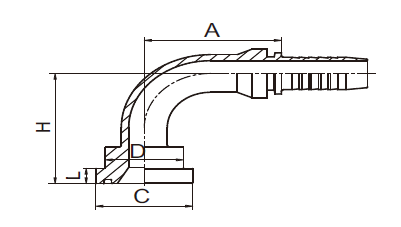

訂貨號 | 法蘭型號 | 膠 管 | 尺 寸 | |||||||||||
公稱內徑 | 標號 | A | C | D | H | L | ||||||||
FHC-08-08 | 1/2" | 12 | 8 | 41 | 31.7 | 24 | 48 | 7.75 | ||||||
FHC-12-10 | 3/4" | 16 | 10 | 56 | 41.3 | 32 | 56.5 | 8.76 | ||||||
FHC-12-12 | 3/4" | 20 | 12 | 65.5 | 41.3 | 32 | 66 | 8.76 | ||||||
FHC-16-12 | 1" | 20 | 12 | 65.5 | 47.6 | 38 | 69 | 9.53 | ||||||
FHC-16-16 | 1" | 25 | 16 | 76.7 | 47.6 | 38 | 74.5 | 9.53 | ||||||
FHC-16-20 | 1" | 32 | 20 | 91.5 | 47.6 | 38 | 85.5 | 9.53 | ||||||
FHC-20-16 | 1.1/4" | 25 | 16 | 76.7 | 54 | 44 | 78.5 | 10.29 | ||||||
FHC-20-20 | 1.1/4" | 32 | 20 | 91.5 | 54 | 44 | 89.5 | 10.29 | ||||||
FHC-24-20 | 1.1/2" | 32 | 20 | 91.5 | 63.5 | 51 | 94.5 | 12.57 | ||||||
FHC-24-24 | 1.1/2" | 40 | 24 | 109.4 | 63.5 | 51 | 108 | 12.57 | ||||||
FHC-32-24 | 2" | 40 | 24 | 109.4 | 79.4 | 67 | 116 | 12.57 | ||||||
FHC-32-32 | 2" | 50 | 32 | 131.8 | 79.4 | 67 | 136.3 | 12.57 |
