產品名稱:
SAE 法蘭 3000 PSI 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

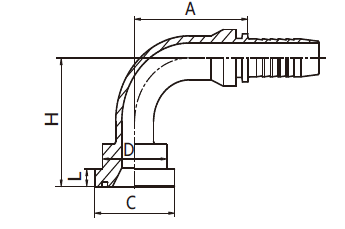

訂貨號 | 法蘭型號 | 膠 管 | 尺 寸 | |||||||||||||||
公稱內徑 | 標號 | A | C | D | H | L | ||||||||||||
FLC-08-08 | 1/2" | 12 | 8 | 41 | 30.2 | 24 | 47 | 6.73 | ||||||||||
FLC-12-08 | 3/4" | 12 | 8 | 41 | 38.1 | 31.7 | 48 | 6.73 | ||||||||||
FLC-12-10 | 3/4" | 16 | 10 | 56 | 38.1 | 31.7 | 52.5 | 6.73 | ||||||||||
FLC-12-12 | 3/4" | 20 | 12 | 66.2 | 38.1 | 31.7 | 62 | 6.73 | ||||||||||
FLC-12-16 | 3/4" | 25 | 16 | 76.7 | 38.1 | 31.7 | 67.5 | 6.73 | ||||||||||
FLC-16-12 | 1" | 20 | 12 | 65.5 | 44.4 | 38 | 62 | 8 | ||||||||||
FLC-16-16 | 1" | 25 | 16 | 76.7 | 44.4 | 38 | 67.5 | 8 | ||||||||||
FLC-16-20 | 1" | 32 | 20 | 91.5 | 44.4 | 38 | 78.5 | 8 | ||||||||||
FLC-20-16 | 1.1/4" | 25 | 16 | 76.7 | 50.8 | 43 | 67.5 | 8 | ||||||||||
FLC-20-20 | 1.1/4" | 32 | 20 | 91.5 | 50.8 | 43 | 78.5 | 8 | ||||||||||
FLC-20-24 | 1.1/4" | 40 | 24 | 107 | 50.8 | 43 | 78.5 | 8 | ||||||||||
FLC-24-20 | 1.1/2" | 32 | 20 | 91.5 | 60.3 | 50 | 80.5 | 8 | ||||||||||
FLC-24-24 | 1.1/2" | 40 | 24 | 109.4 | 60.3 | 50 | 94 | 8 | ||||||||||
FLC-32-24 | 2" | 40 | 24 | 109.4 | 71.4 | 62 | 94 | 9.53 | ||||||||||
FLC-32-32 | 2" | 50 | 32 | 131.8 | 71.4 | 62 | 114.3 | 9.53 | ||||||||||
FLC-40-32 | 2.1/2" | 50 | 32 | 131.8 | 84.1 | 74.4 | 116.3 | 9.53 |
