產品名稱:
SAE 法蘭 3000PSI直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

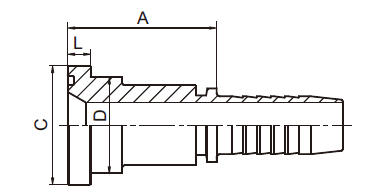

訂貨號 | 法蘭型號 | 膠管 | 尺寸 | |||||||||||||
公稱內徑 | 標號 | A | C | D | L | |||||||||||
FLA-08-08 | 1/2" | 12 | 8 | 46 | 30.2 | 24 | 6.73 | |||||||||
FLA-12-08 | 3/4" | 12 | 8 | 47 | 38.1 | 31.7 | 6.73 | |||||||||
FLA-12-10 | 3/4" | 16 | 10 | 48 | 38.1 | 31.7 | 6.73 | |||||||||
FLA-12-12 | 3/4" | 20 | 12 | 48 | 38.1 | 31.7 | 6.73 | |||||||||
FLA-12-16 | 3/4" | 25 | 16 | 49 | 38.1 | 31.7 | 6.73 | |||||||||
FLA-16-12 | 1" | 20 | 12 | 51 | 44.4 | 38 | 8 | |||||||||
FLA-16-16 | 1" | 25 | 16 | 52 | 44.4 | 38 | 8 | |||||||||
FLA-16-20 | 1" | 32 | 20 | 53 | 44.4 | 38 | 8 | |||||||||
FLA-20-16 | 1.1/4" | 25 | 16 | 57 | 50.8 | 43 | 8 | |||||||||
FLA-20-20 | 1.1/4" | 32 | 20 | 58 | 50.8 | 43 | 8 | |||||||||
FLA-24-20 | 1.1/2" | 32 | 20 | 68 | 60.3 | 50 | 8 | |||||||||
FLA-24-24 | 1.1/2" | 40 | 24 | 68 | 60.3 | 50 | 8 | |||||||||
FLA-32-24 | 2" | 40 | 24 | 70 | 71.4 | 62 | 9.53 | |||||||||
FLA-32-32 | 2" | 50 | 32 | 70 | 71.4 | 62 | 9.53 | |||||||||
FLA-40-40 | 2.1/2" | 64 | 40 | 76 | 84.1 | 74 | 9.53 |
