產品名稱：
美制螺紋O形圈密封柱端直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

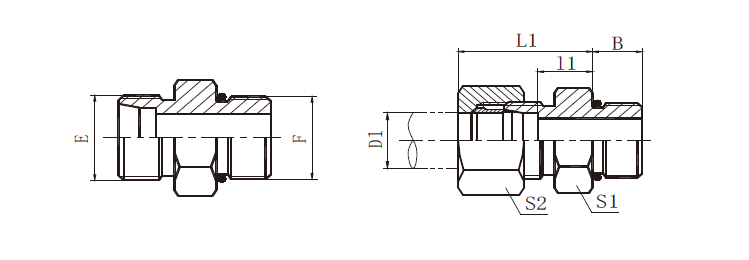

| 訂貨號 | 螺 紋 | 鋼管外徑 | 尺 寸 | 工作壓力 MPa | |||||
| E | F | D1 | B | L1 | L2 | S1 | S2 | ||
| A08-14-04 | M14X1.5 | 7/16"X20 | 8 | 9 | 10 | 25 | 17 | 17 | 31.5 輕系列 L |
| A08-16-04 | M16X1.5 | 7/16"X20 | 10 | 9 | 11 | 26 | 17 | 19 | |
| A08-18-06 | M18X1.5 | 9/16"X18 | 12 | 10 | 11 | 26 | 19 | 22 | |
| A08-18-08 | M18X1.5 | 3/4"X16 | 12 | 11 | 13 | 28 | 24 | 22 | |
| A08-18-10 | M18X1.5 | 7/8"X14 | 12 | 12.7 | 14.3 | 29 | 27 | 22 | |
| A08-22-08 | M22X1.5 | 3/4"X16 | 15 | 11 | 14 | 29 | 24 | 27 | |
| A08-22-10 | M22X1.5 | 7/8"X14 | 15 | 12.7 | 15.3 | 30 | 27 | 27 | |
| A08-22-12 | M22X1.5 | 1.1/16"X12 | 15 | 15.1 | 11.9 | 30 | 32 | 27 | |
| A08-26-08 | M26X1.5 | 3/4"X16 | 18 | 11 | 14.5 | 31 | 27 | 32 | |
| A08-26-10 | M26X1.5 | 7/8"X14 | 18 | 12.7 | 14.8 | 31 | 27 | 32 | |
| A08-30-08 | M30X2 | 3/4"X16 | 22 | 11 | 13.9 | 33 | 32 | 36 | 16 輕系列 L |
| A08-30-10 | M30X2 | 7/8"X14 | 22 | 12.7 | 16.8 | 33 | 32 | 36 | |
| A08-30-12 | M30X2 | 1.1/16"X12 | 22 | 15 | 16.5 | 33 | 32 | 36 | |
| A08-30-16 | M30X2 | 1.5/16"X12 | 22 | 15 | 17.5 | 34 | 41 | 36 | |
| A08-36-12 | M36X2 | 1.1/16"X12 | 28 | 15.1 | 14.4 | 34 | 41 | 41 | |
| A08-36-16 | M36X2 | 1.5/16"X12 | 28 | 15 | 17.5 | 34 | 41 | 41 | |
| A08-45-16 | M45X2 | 1.5/16"X12 | 35 | 15 | 17.5 | 39 | 46 | 50 | |
| A08-45-20 | M45X2 | 1.5/8"X12 | 35 | 15.1 | 16.4 | 39 | 50 | 50 | |
| A08-52-20 | M52X2 | 1.5/8"X12 | 42 | 15.1 | 15.9 | 42 | 55 | 60 | |
| A18-16-04 | M16X1.5 | 7/16"X20 | 8 | 9 | 15 | 30 | 17 | 19 | 63 重系列 S |
| A18-18-06 | M18X1.5 | 9/16"X18 | 10 | 10 | 14.5 | 31 | 19 | 22 | |
| A18-20-06 | M20X1.5 | 9/16"X18 | 12 | 10 | 14.5 | 31 | 22 | 24 | |
| A18-24-08 | M24X1.5 | 3/4"X16 | 16 | 11 | 15.5 | 34 | 24 | 30 | 40 重系列 S |
| A18-24-10 | M24X1.5 | 7/8"X14 | 16 | 12.7 | 18.8 | 37 | 27 | 30 | |
| A18-30-10 | M30X2 | 7/8"X14 | 20 | 12.7 | 20.8 | 42 | 32 | 36 | |
| A18-30-12 | M30X2 | 1.1/16"X12 | 20 | 15 | 20.5 | 42 | 32 | 36 | |
| A18-36-12 | M36X2 | 1.1/16"X12 | 25 | 15.1 | 19.9 | 47 | 41 | 46 | |
| A18-36-16 | M36X2 | 1.5/16"X12 | 25 | 15 | 23 | 47 | 41 | 46 | |
| A18-42-16 | M42X2 | 1.5/16"X12 | 30 | 15 | 23.5 | 50 | 46 | 50 | |
| A18-42-20 | M42X2 | 1.5/8"X12 | 30 | 15 | 23.5 | 50 | 50 | 50 | |
| A18-52-20 | M52X2 | 1.5/8"X12 | 38 | 15.1 | 22.9 | 53.9 | 55 | 60 | 31.5 重系列S |
注：如需帶卡套及螺母整套訂貨，則請在代號后加“/A”,如A08-22-10/A。如需不銹鋼304材料，請在訂貨號后加SS，不銹鋼316L材料，請在訂貨號后加SSB。
