產品名稱：
美制ORFS內螺紋平面 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

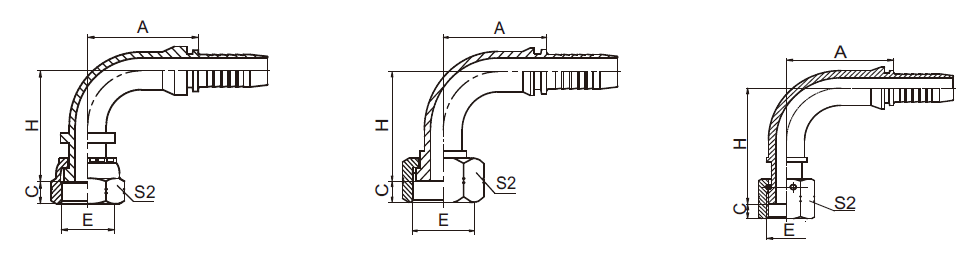

| 訂貨號 | 螺紋E | 膠 管 | 尺 寸 | ||||||||||
| 公稱內徑 | 標號 | A | H | C | S2 | ||||||||
| MOC-04-04 | 9/16"X18 | 6 | 4 | 30 | 41 | 8.5 | 19 | ||||||
| MOC-04-05 | 9/16"X18 | 8 | 5 | 33 | 44 | 8.5 | 19 | ||||||
| MOC-06-05T | 11/16"X16 | 8 | 5 | 33 | 37.5 | 10 | 22 | ||||||
| MOC-06-06 | 11/16"X16 | 10 | 6 | 35.3 | 49.3 | 10 | 22 | ||||||
| MOC-06-08 | 11/16"X16 | 12 | 8 | 41 | 55 | 10 | 22 | ||||||
| MOC-08-06T | 13/16"X16 | 10 | 6 | 35.3 | 39.8 | 11 | 27 | ||||||
| MOC-08-08 | 13/16"X16 | 12 | 8 | 41 | 57.5 | 11 | 27 | ||||||
| MOC-08-10 | 13/16"X16 | 16 | 10 | 56.5 | 61.5 | 11 | 27 | ||||||
| MOC-10-08T | 1"X14 | 12 | 8 | 41 | 46 | 13.5 | 30 | ||||||
| MOC-10-10 | 1"X14 | 16 | 10 | 56 | 66 | 13.5 | 30 | ||||||
| MOC-10-12 | 1"X14 | 20 | 12 | 65.5 | 75.5 | 13.5 | 30 | ||||||
| MOC-12-10T | 1.3/16"X12 | 16 | 10 | 56 | 51.5 | 15 | 36 | ||||||
| MOC-12-12 | 1.3/16"X12 | 20 | 12 | 65.5 | 77 | 15 | 36 | ||||||
| MOC-12-16 | 1.3/16"X12 | 25 | 16 | 76.7 | 83.5 | 15 | 36 | ||||||
| MOC-16-12T | 1.7/16"X12 | 20 | 12 | 65.5 | 63 | 14.8 | 41 | ||||||
| MOC-16-14T | 1.7/16"X12 | 22 | 14 | 71.2 | 63 | 14.8 | 41 | ||||||
| MOC-16-16T | 1.7/16"X12 | 25 | 16 | 76.9 | 67.5 | 14.8 | 41 | ||||||
| MOC-20-16T | 1.11/16"X12 | 25 | 16 | 76.7 | 67.5 | 15 | 50 | ||||||
| MOC-20-20W | 1.11/16"X12 | 32 | 20 | 93 | 100 | 15 | 50 | ||||||
| MOC-24-20T | 2"X12 | 32 | 20 | 91.5 | 78.5 | 14.8 | 60 | ||||||
| MOC-24-24T | 2"X12 | 40 | 24 | 109.4 | 92 | 14.8 | 60 | ||||||
