產品名稱：
美制ORFS內螺紋平面直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

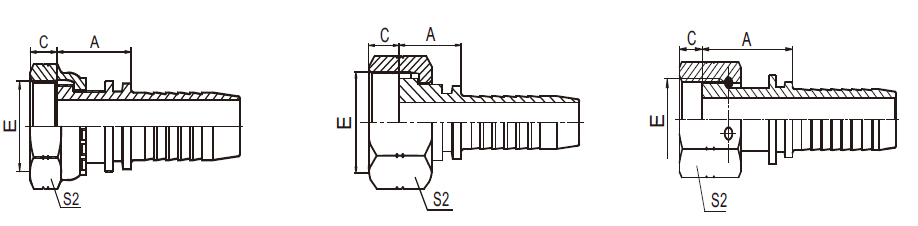

| 訂貨號 | 螺紋E | 膠 管 | 尺 寸 | ||||||||
| 公稱內徑 | 標號 | A | C | S2 | |||||||
| MOA-04-04 | 9/16"X18 | 6 | 4 | 22.5 | 8.5 | 19 | |||||
| MOA-04-05 | 9/16"X18 | 8 | 5 | 22.5 | 8.5 | 19 | |||||
| MOA-04-06 | 9/16"X18 | 10 | 6 | 22.5 | 8.5 | 19 | |||||
| MOA-06-04T | 11/16"X16 | 6 | 4 | 23.5 | 10 | 22 | |||||
| MOA-06-05T | 11/16"X16 | 8 | 5 | 23.5 | 10 | 22 | |||||
| MOA-06-06 | 11/16"X16 | 10 | 6 | 25.5 | 10 | 22 | |||||
| MOA-06-08 | 11/16"X16 | 12 | 8 | 26 | 10 | 22 | |||||
| MOA-08-05T | 13/16"X16 | 8 | 5 | 25 | 11 | 27 | |||||
| MOA-08-06T | 13/16"X16 | 10 | 6 | 25 | 11 | 27 | |||||
| MOA-08-08 | 13/16"X16 | 12 | 8 | 28 | 11 | 27 | |||||
| MOA-08-10 | 13/16"X16 | 16 | 10 | 29 | 11 | 27 | |||||
| MOA-10-08T | 1"X14 | 12 | 8 | 29.5 | 13.5 | 30 | |||||
| MOA-10-10 | 1"X14 | 16 | 10 | 33 | 13.5 | 30 | |||||
| MOA-10-12 | 1"X14 | 20 | 12 | 33.5 | 13.5 | 30 | |||||
| MOA-12-08T | 1.3/16"X12 | 12 | 8 | 30.5 | 15 | 36 | |||||
| MOA-12-10T | 1.3/16"X12 | 16 | 10 | 31.5 | 15 | 36 | |||||
| MOA-12-12 | 1.3/16"X12 | 20 | 12 | 35 | 15 | 36 | |||||
| MOA-12-16 | 1.3/16"X12 | 25 | 16 | 36 | 15 | 36 | |||||
| MOA-16-12T | 1.7/16"X12 | 20 | 12 | 35 | 14.8 | 41 | |||||
| MOA-16-14T | 1.7/16"X12 | 22 | 14 | 35 | 14.8 | 41 | |||||
| MOA-16-16T | 1.7/16"X12 | 25 | 16 | 35 | 14.8 | 41 | |||||
| MOA-16-20 | 1.7/16"X12 | 32 | 20 | 39.5 | 14.8 | 41 | |||||
| MOA-20-16T | 1.11/16"X12 | 25 | 16 | 35 | 15 | 50 | |||||
| MOA-20-20W | 1.11/16"X12 | 32 | 20 | 42.5 | 15 | 50 | |||||
| MOA-20-24W | 1.11/16"X12 | 40 | 24 | 42.5 | 15 | 50 | |||||
| MOA-24-20T | 2"X12 | 32 | 20 | 36 | 14.8 | 60 | |||||
| MOA-24-24T | 2"X12 | 40 | 24 | 36 | 14.8 | 60 | |||||
