產品名稱：

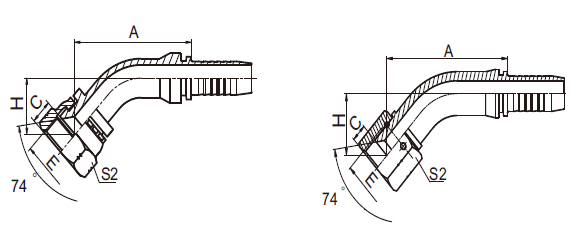

JIC內螺紋74°內錐面 45°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述
| 訂貨號 | 螺紋E | 膠 管 | 尺 寸 | |||||||||
| 公稱內徑 | 標號 | A | C | H | S2 | |||||||
| JFB-04-04 | 7/16"X20 | 6 | 4 | 40.2 | 9 | 18.1 | 15 | |||||
| JFB-05-04 | 1/2"X20 | 6 | 4 | 40.5 | 9.5 | 18.5 | 17 | |||||
| JFB-05-05 | 1/2"X20 | 8 | 5 | 42.7 | 9.5 | 19.3 | 17 | |||||
| JFB-05-06 | 1/2"X20 | 10 | 6 | 44.6 | 9.5 | 20.3 | 17 | |||||
| JFB-06-04 | 9/16"X18 | 6 | 4 | 40.5 | 10.5 | 18.5 | 19 | |||||
| JFB-06-05 | 9/16"X18 | 8 | 5 | 42.6 | 10.5 | 19.3 | 19 | |||||
| JFB-06-06 | 9/16"X18 | 10 | 6 | 44.3 | 10.5 | 20 | 19 | |||||
| JFB-08-06 | 3/4"X16 | 10 | 6 | 45.7 | 11 | 21.4 | 24 | |||||
| JFB-08-08 | 3/4"X16 | 12 | 8 | 57.9 | 11 | 22.9 | 24 | |||||
| JFB-10-08 | 7/8"X14 | 12 | 8 | 58.9 | 13 | 24 | 27 | |||||
| JFB-10-10 | 7/8"X14 | 16 | 10 | 69.6 | 13 | 25.3 | 27 | |||||
| JFB-10-12 | 7/8"X14 | 20 | 12 | 75.7 | 13 | 28.9 | 27 | |||||
| JFB-12-08 | 1.1/16"X12 | 12 | 8 | 60 | 15 | 25.1 | 32 | |||||
| JFB-12-10 | 1.1/16"X12 | 16 | 10 | 70.7 | 15 | 26.4 | 32 | |||||
| JFB-12-12 | 1.1/16"X12 | 20 | 12 | 76.8 | 15 | 30 | 32 | |||||
| JFB-16-12 | 1.5/16"X12 | 20 | 12 | 77.4 | 16 | 30 | 41 | |||||
| JFB-16-16 | 1.5/16"X12 | 25 | 16 | 85.7 | 16 | 31.5 | 41 | |||||
| JFB-20-20W | 1.5/8"X12 | 32 | 20 | 95.9 | 17 | 35.2 | 50 | |||||
| JFB-24-20W | 1.7/8"X12 | 32 | 20 | 100.9 | 20 | 40.1 | 55 | |||||
| JFB-24-24W | 1.7/8"X12 | 40 | 24 | 114.8 | 20 | 44.1 | 55 | |||||
| JFB-32-32W | 2.1/2"X12 | 50 | 32 | 135.9 | 23.5 | 51.6 | 75 | |||||
