產品名稱：

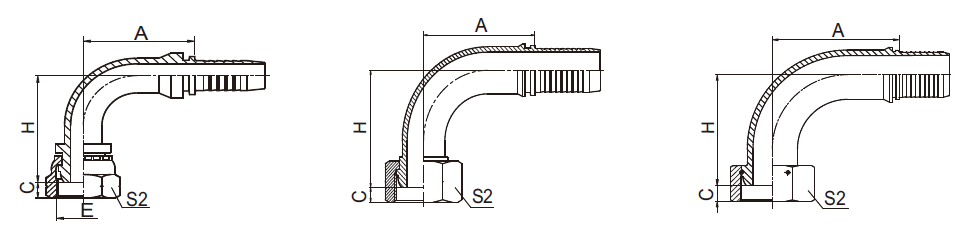

英管內螺紋球面 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述
| 訂貨號 | 螺紋E | 膠管 | 尺寸 | |||||||||
| 公稱內徑 | 標號 | A | C | H | S2 | |||||||
| BAC-04-04 | G1/4"X19 | 6 | 4 | 30 | 4 | 38 | 19 | |||||
| BAC-04-05 | G1/4"X19 | 8 | 5 | 33 | 4 | 41.5 | 19 | |||||
| BAC-06-05 | G3/8"X19 | 8 | 5 | 33 | 5 | 42 | 22 | |||||
| BAC-06-06 | G3/8"X19 | 10 | 6 | 35.3 | 5 | 44.3 | 22 | |||||
| BAC-06-08 | G3/8"X19 | 12 | 8 | 41 | 5 | 50 | 22 | |||||
| BAC-08-06T | G1/2"X14 | 10 | 6 | 35.3 | 6 | 46.8 | 27 | |||||
| BAC-08-08 | G1/2"X14 | 12 | 8 | 41 | 6 | 52.5 | 27 | |||||
| BAC-10-10 | G5/8"X14 | 16 | 10 | 56.5 | 8 | 57.5 | 30 | |||||
| BAC-10-12 | G5/8"X14 | 20 | 12 | 65.5 | 8 | 67 | 30 | |||||
| BAC-12-08T | G3/4"X14 | 12 | 8 | 41 | 9.5 | 52 | 32 | |||||
| BAC-12-10 | G3/4"X14 | 16 | 10 | 56.5 | 9.5 | 58.5 | 32 | |||||
| BAC-12-12 | G3/4"X14 | 20 | 12 | 65.5 | 9.5 | 68 | 32 | |||||
| BAC-16-12T | G1"X11 | 20 | 12 | 66.2 | 11 | 68.5 | 41 | |||||
| BAC-16-14 | G1"X11 | 22 | 14 | 71.2 | 11 | 69.5 | 41 | |||||
| BAC-16-16 | G1"X11 | 25 | 16 | 76.7 | 11 | 75 | 41 | |||||
| BAC-20-16T | G1.1/4"X11 | 25 | 16 | 76.7 | 10 | 78 | 50 | |||||
| BAC-20-20W | G1.1/4"X11 | 32 | 20 | 92.3 | 10 | 85.3 | 50 | |||||
| BAC-24-24W | G1.1/2"X11 | 40 | 24 | 109.4 | 11.5 | 108 | 55 | |||||
| BAC-32-32W | G2"X11 | 50 | 32 | 133.1 | 15 | 123.8 | 70 | |||||
