產品名稱：

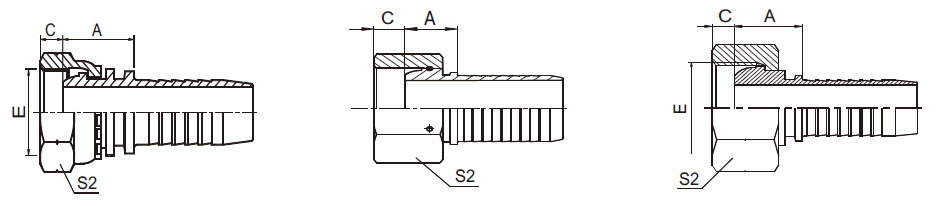

英管內螺紋球面直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述
| 訂貨號 | 螺紋E | 膠管 | 尺寸 | ||||||||||
| 公稱內徑 | 標號 | A | C | S2 | |||||||||
| BAA-04-04 | G1/4"X19 | 6 | 4 | 19.5 | 4 | 19 | |||||||
| BAA-06-05 | G3/8"X19 | 8 | 5 | 20 | 5 | 22 | |||||||
| BAA-06-06 | G3/8"X19 | 10 | 6 | 20.5 | 5 | 22 | |||||||
| BAA-06-08 | G3/8"X19 | 12 | 8 | 21 | 5 | 22 | |||||||
| BAA-08-06T | G1/2"X14 | 10 | 6 | 22.5 | 6 | 27 | |||||||
| BAA-08-08 | G1/2"X14 | 12 | 8 | 23 | 6 | 27 | |||||||
| BAA-08-10 | G1/2"X14 | 16 | 10 | 24 | 6 | 27 | |||||||
| BAA-10-10 | G5/8"X14 | 16 | 10 | 25 | 8 | 30 | |||||||
| BAA-10-12 | G5/8"X14 | 20 | 12 | 25 | 8 | 30 | |||||||
| BAA-12-08T | G3/4"X14 | 12 | 8 | 25 | 9.5 | 32 | |||||||
| BAA-12-10 | G3/4"X14 | 16 | 10 | 26 | 9.5 | 32 | |||||||
| BAA-12-12 | G3/4"X14 | 20 | 12 | 26 | 9.5 | 32 | |||||||
| BAA-16-12T | G1"X11 | 20 | 12 | 26.5 | 11 | 41 | |||||||
| BAA-16-14 | G1"X11 | 22 | 14 | 26.5 | 11 | 41 | |||||||
| BAA-16-16 | G1"X11 | 25 | 16 | 28 | 11 | 41 | |||||||
| BAA-20-16T | G1.1/4"X11 | 25 | 16 | 27.5 | 11 | 50 | |||||||
| BAA-20-20W | G1.1/4"X11 | 32 | 20 | 31.5 | 10 | 50 | |||||||
| BAA-24-24W | G1.1/2"X11 | 40 | 24 | 37 | 11.5 | 55 | |||||||
| BAA-32-32W | G2"X11 | 50 | 32 | 34 | 15 | 70 | |||||||
