產品名稱：
公制卡套式直管直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

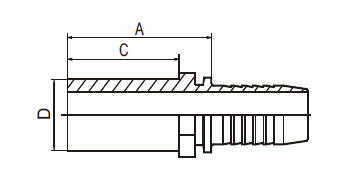

| 訂貨號 | 硬管外徑D | 軟 管 | 尺 寸 | 備 注 | ||||||
| 公稱內徑 | 標號 | A | C | |||||||
| MTA-06-03 | 6 | 5 | 3 | 28.5 | 22 | 輕系列 L | ||||
| MTA-06-04 | 6 | 6 | 4 | 29 | 22 | |||||
| MTA-10-05 | 10 | 8 | 5 | 31 | 23 | |||||
| MTA-10-06 | 10 | 10 | 6 | 32 | 23 | |||||
| MTA-12-06 | 12 | 10 | 6 | 33.5 | 23 | |||||
| MTA-12-08 | 12 | 12 | 8 | 33 | 23 | |||||
| MTA-15-06 | 15 | 10 | 6 | 35.5 | 25 | |||||
| MTA-15-08 | 15 | 12 | 8 | 35.5 | 25 | |||||
| MTA-18-08 | 18 | 12 | 8 | 36.5 | 26 | |||||
| MTA-18-10 | 18 | 16 | 10 | 41 | 26 | |||||
| MTA-22-10 | 22 | 16 | 10 | 44 | 28 | |||||
| MTA-22-12 | 22 | 20 | 12 | 44 | 28 | |||||
| MTA-22-16 | 22 | 25 | 16 | 46 | 28 | |||||
| MTA-28-16 | 28 | 25 | 16 | 47 | 30 | |||||
| MTA-35-20 | 35 | 32 | 20 | 56 | 36 | |||||
| MTA-42-24 | 42 | 40 | 24 | 62 | 40 | |||||
| MTA-08-04 | 8 | 6 | 4 | 31 | 24 | 重系列 S | ||||
| MTA-08-05 | 8 | 8 | 5 | 33 | 24 | |||||
| MTA-08-06 | 8 | 10 | 6 | 33 | 24 | |||||
| MTA-10-04 | 10 | 6 | 4 | 35 | 26 | |||||
| MTA-12-04 | 12 | 6 | 4 | 34.5 | 26 | |||||
| MTA-12-05 | 12 | 8 | 5 | 35.5 | 26 | |||||
| MTA-14-06 | 14 | 10 | 6 | 39.5 | 29 | |||||
| MTA-14-08 | 14 | 12 | 8 | 40 | 29 | |||||
| MTA-14-12 | 14 | 20 | 12 | 45.5 | 29 | |||||
| MTA-16-08 | 16 | 12 | 8 | 41 | 30 | |||||
| MTA-16-10 | 16 | 16 | 10 | 45.5 | 30 | |||||
| MTA-20-10 | 20 | 16 | 10 | 52.5 | 36 | |||||
| MTA-20-12 | 20 | 20 | 12 | 52.5 | 36 | |||||
| MTA-25-12 | 25 | 20 | 12 | 56 | 40 | |||||
| MTA-25-16 | 25 | 25 | 16 | 57 | 40 | |||||
| MTA-30-16 | 30 | 25 | 16 | 63 | 44 | |||||
| MTA-30-20 | 30 | 32 | 20 | 64 | 44 | |||||
| MTA-38-16 | 38 | 25 | 16 | 69 | 50 | |||||
| MTA-38-20 | 38 | 32 | 20 | 70 | 50 | |||||
