產品名稱：
公制螺紋24°內錐重系列 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列

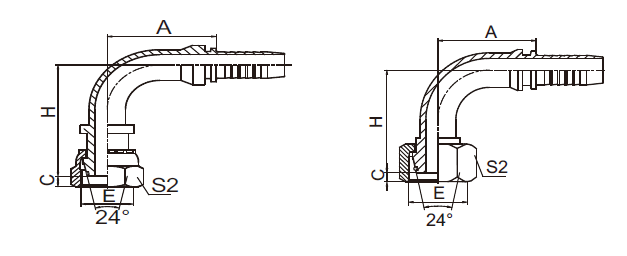

產品描述
| 訂貨號 | 螺紋E | 膠 管 | 硬管外徑 | O形圈 | 尺 寸 | ||||||||||
| 公稱內徑 | 標號 | A | C | H | S2 | ||||||||||
| DSC-14-04T | M16X1.5 | 6 | 4 | 6 | O04.5X1.5 | 30 | 1.5 | 39.5 | 19 | ||||||
| DSC-16-04T | M16X1.5 | 6 | 4 | 8 | O06.5X1.5 | 30 | 1.5 | 39.5 | 19 | ||||||
| DSC-16-05T | M16X1.5 | 8 | 5 | 8 | O06.5X1.5 | 33 | 1.5 | 42.5 | 22 | ||||||
| DSC-18-05T | M18X1.5 | 8 | 5 | 10 | O08.0X1.5 | 33 | 1.5 | 41.5 | 22 | ||||||
| DSC-18-06T | M18X1.5 | 10 | 6 | 10 | O08.0X1.5 | 35.3 | 2 | 45.8 | 24 | ||||||
| DSC-20-06T | M20X1.5 | 10 | 6 | 12 | O10.0X1.5 | 35.3 | 2.5 | 44.3 | 24 | ||||||
| DSC-20-08 | M20X1.5 | 12 | 8 | 12 | O10.0X1.5 | 41 | 2.5 | 61 | 27 | ||||||
| DSC-22-06T | M22X1.5 | 10 | 6 | 14 | O11.0X2.0 | 35.3 | 3 | 44.8 | 27 | ||||||
| DSC-22-08T | M22X1.5 | 12 | 8 | 14 | O11.0X2.0 | 41 | 2.5 | 53 | 27 | ||||||
| DSC-24-08T | M24X1.5 | 12 | 8 | 16 | O13.0X2.0 | 41 | 3 | 50.5 | 30 | ||||||
| DSC-24-10 | M24X1.5 | 16 | 10 | 16 | O13.0X2.0 | 56.5 | 2.5 | 56.5 | 30 | ||||||
| DSC-30-10T | M30X2 | 16 | 10 | 20 | O16.3X2.4 | 56 | 2.5 | 58 | 36 | ||||||
| DSC-30-12T | M30X2 | 20 | 12 | 20 | O16.3X2.4 | 64.9 | 3 | 64 | 36 | ||||||
| DSC-36-12T | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 66.2 | 3.2 | 67.8 | 46 | ||||||
| DSC-36-16T | M36X2 | 25 | 16 | 25 | O20.3X2.4 | 75 | 3 | 71 | 41 | ||||||
| DSC-42-16T | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 78 | 3.9 | 75.1 | 50 | ||||||
| DSC-52-20T | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 93 | 4.5 | 86.5 | 60 | ||||||
| DSC-52-24T | M52X2 | 40 | 24 | 38 | O33.3X2.4 | 109.4 | 4.5 | 100 | 60 | ||||||
