產品名稱：

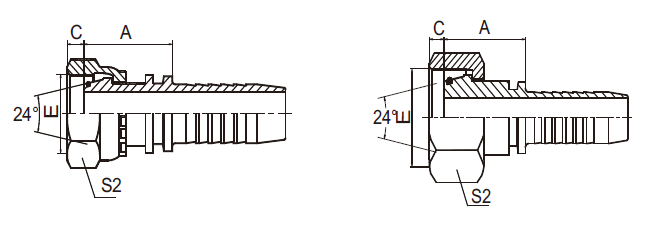

公制螺紋24°內錐輕系列直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述
| 訂貨號 | 螺紋E | 膠 管 | 硬管外徑 | O形圈 | 尺 寸 | ||||||||
| 公稱內徑 | 標號 | A | C | S2 | |||||||||
| DLA-12-04 | M12X1.5 | 6 | 4 | 6 | O04.5X1.5 | 26 | 1 | 17 | |||||
| DLA-14-04T | M14X1.5 | 6 | 4 | 8 | 006.5X1.5 | 24 | 2 | 17 | |||||
| DLA-14-06 | M14X1.5 | 10 | 6 | 8 | O06.5X1.5 | 27.5 | 2 | 19 | |||||
| DLA-16-04T | M16X1.5 | 6 | 4 | 10 | O08.0X1.5 | 24 | 2 | 19 | |||||
| DLA-16-05T | M16X1.5 | 8 | 5 | 10 | O08.0X1.5 | 25 | 2 | 19 | |||||
| DLA-16-06 | M16X1.5 | 10 | 6 | 10 | O08.0X1.5 | 28 | 2 | 22 | |||||
| DLA-18-05T | M18X1.5 | 8 | 5 | 12 | O10.0X1.5 | 24.5 | 1.5 | 22 | |||||
| DLA-18-06T | M18X1.5 | 10 | 6 | 12 | O10.0X1.5 | 25 | 2.5 | 22 | |||||
| DLA-18-08 | M18X1.5 | 12 | 8 | 12 | O10.0X1.5 | 29.5 | 2.5 | 24 | |||||
| DLA-22-05T | M22X1.5 | 8 | 5 | 15 | O12.0X2.0 | 26.5 | 3 | 27 | |||||
| DLA-22-06T | M22X1.5 | 10 | 6 | 15 | O12.0X2.0 | 26.5 | 3 | 27 | |||||
| DLA-22-08T | M22X1.5 | 12 | 8 | 15 | O12.0X2.0 | 27.5 | 2.5 | 27 | |||||
| DLA-26-10T | M26X1.5 | 16 | 10 | 18 | O15.0X2.0 | 30 | 2.5 | 32 | |||||
| DLA-26-12 | M26X1.5 | 20 | 12 | 18 | O15.0X2.0 | 35 | 2.5 | 32 | |||||
| DLA-30-10T | M30X2 | 16 | 10 | 22 | O20.0X2.0 | 31 | 3.8 | 36 | |||||
| DLA-30-12T | M30X2 | 20 | 12 | 22 | O20.0X2.0 | 33 | 4 | 36 | |||||
| DLA-36-12T | M36X2 | 20 | 12 | 28 | O26.0X2.0 | 33 | 4.5 | 46 | |||||
| DLA-45-16T | M45X2 | 25 | 16 | 35 | O32.0X2.5 | 37 | 4 | 55 | |||||
| DLA-45-20T | M45X2 | 32 | 20 | 35 | O32.0X2.5 | 37.5 | 4 | 55 | |||||
| DLA-52-20T | M52X2 | 32 | 20 | 42 | O38.0X2.5 | 38.5 | 4 | 60 | |||||
| DLA-52-24T | M52X2 | 40 | 24 | 42 | O38.0X2.5 | 38.5 | 4 | 60 | |||||
