產品名稱:
日本英管外螺紋60°外錐 / 英錐管外螺紋 45
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

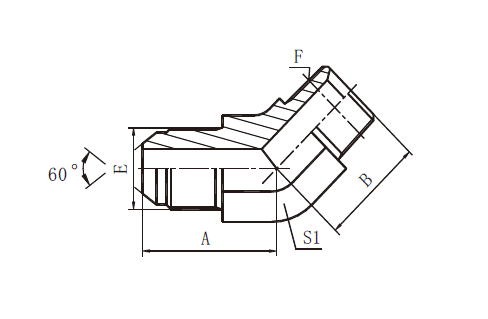

訂貨號 | 螺 紋 | 尺 寸 | |||||
E | F | A | B | S1 | |||
AS4-02/4 | G1/8"X28 | R1/8"X28 | 19 | 17 | 11 | ||
AS4-02-04/4 | G1/8"X28 | R1/4"X19 | 19.8 | 21 | 14 | ||
AS4-04/4 | G1/4"X19 | R1/4"X19 | 24 | 21 | 14 | ||
AS4-04-02/4 | G1/4"X19 | R1/8"X28 | 24.5 | 17.5 | 14 | ||
AS4-04-06/4 | G1/4"X19 | R3/8"X19 | 24.5 | 23 | 16 | ||
AS4-04-08/4 | G1/4"X19 | R1/2"X14 | 26.5 | 29.5 | 22 | ||
AS4-06/4 | G3/8"X19 | R3/8"X19 | 26 | 23 | 16 | ||
AS4-06-04/4 | G3/8"X19 | R1/4"X19 | 26 | 21 | 16 | ||
AS4-06-08/4 | G3/8"X19 | R1/2"X14 | 28.5 | 29.5 | 22 | ||
AS4-08/4 | G1/2"X14 | R1/2"X14 | 31 | 29.5 | 22 | ||
AS4-08-06/4 | G1/2"X14 | R3/8"X19 | 30.5 | 25 | 22 | ||
AS4-12/4 | G3/4"X14 | R3/4"X14 | 34.5 | 30.5 | 27 | ||
AS4-12-08/4 | G3/4"X14 | R1/2"X14 | 34 | 30 | 27 | ||
AS4-16/4 | G1"X11 | R1"X11 | 37.5 | 38 | 33 | ||
AS4-16-12/4 | G1"X11 | R3/4"X14 | 37.5 | 32 | 33 | ||
AS4-20/4 | G1.1/4"X11 | R1.1/4"X11 | 44.5 | 43 | 41 | ||
AS4-24/4 | G1.1/2"X11 | R1.1/2"X11 | 47.5 | 47 | 48 | ||
AS4-32/4 | G2"X11 | R2"X11 | 54 | 53 | 63 |
