產品名稱：
日本英管外螺紋60°外錐 / 英錐管外螺紋直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

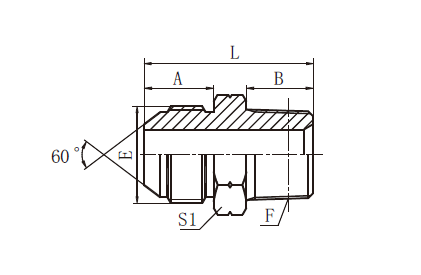

| 訂貨號 | 螺 紋 | 尺 寸 | ||||||
| E | F | A | B | L | S1 | |||
| AS4-02 | G1/8"X28 | R1/8"X28 | 12 | 10 | 28 | 14 | ||
| AS4-02-04 | G1/8"X28 | R1/4"X19 | 12 | 14.5 | 32.5 | 17 | ||
| AS4-04 | G1/4"X19 | R1/4"X19 | 16 | 14.5 | 36.5 | 17 | ||
| AS4-04-02 | G1/4"X19 | R1/8"X28 | 16 | 10 | 32 | 17 | ||
| AS4-04-06 | G1/4"X19 | R3/8"X19 | 16 | 15 | 37 | 19 | ||
| AS4-04-08 | G1/4"X19 | R1/2"X14 | 16 | 20 | 44 | 22 | ||
| AS4-06 | G3/8"X19 | R3/8"X19 | 18 | 15 | 39 | 19 | ||
| AS4-06-04 | G3/8"X19 | R1/4"X19 | 18 | 14.5 | 40.5 | 22 | ||
| AS4-06-08 | G3/8"X19 | R1/2"X14 | 18 | 20 | 46 | 22 | ||
| AS4-08 | G1/2"X14 | R1/2"X14 | 20 | 20 | 48 | 22 | ||
| AS4-08-04 | G1/2"X14 | R1/4"X19 | 20 | 14.5 | 42.5 | 22 | ||
| AS4-08-06 | G1/2"X14 | R3/8"X19 | 20 | 15 | 45 | 27 | ||
| AS4-08-12 | G1/2"X14 | R3/4"X14 | 20 | 20 | 50 | 27 | ||
| AS4-12 | G3/4"X14 | R3/4"X14 | 22 | 20 | 53 | 30 | ||
| AS4-12-08 | G3/4"X14 | R1/2"X14 | 22 | 20 | 52 | 30 | ||
| AS4-12-16 | G3/4"X14 | R1"X11 | 22 | 25.5 | 58.5 | 36 | ||
| AS4-16 | G1"X11 | R1"X11 | 24 | 25.5 | 62.5 | 41 | ||
| AS4-16-12 | G1"X11 | R3/4"X14 | 24 | 20 | 57 | 41 | ||
| AS4-20 | G1.1/4"X11 | R1.1/4"X11 | 27 | 26.5 | 66 | 46 | ||
| AS4-24 | G1.1/2"X11 | R1.1/2"X11 | 27 | 26.5 | 67.5 | 50 | ||
| AS4-32 | G2"X11 | R2"X11 | 30 | 30 | 77 | 65 | ||
