產品名稱：
JIC外螺紋/布錐管外螺紋 45°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述
| 訂貨號 | 螺 紋 | 尺 寸 | ||||

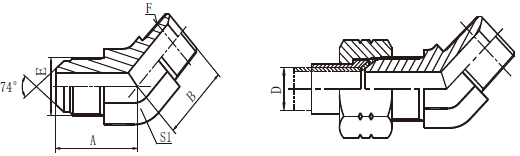

| E | F | A | B | S1 | ||
| AJN-04-02/4 | 7/16"X20 | Z1/8"X27 | 21.5 | 17 | 11 | |
| AJN-04/4 | 7/16"X20 | Z1/4"X18 | 22.3 | 21 | 14 | |
| AJN-06-04/4 | 9/16"X18 | Z1/4"X18 | 22.8 | 21 | 14 | |
| AJN-06/4 | 9/16"X18 | Z3/8"X18 | 24 | 24 | 19 | |
| AJN-06-08/4 | 9/16"X18 | Z1/2"X14 | 25 | 29.5 | 22 | |
| AJN-08-06/4 | 3/4"X16 | Z3/8"X18 | 26.8 | 24 | 19 | |
| AJN-08/4 | 3/4"X16 | Z1/2"X14 | 28 | 29.5 | 22 | |
| AJN-08-12/4 | 3/4"X16 | Z3/4"X14 | 29 | 35 | 27 | |
| AJN-10-08/4 | 7/8"X14 | Z1/2"X14 | 31 | 29.5 | 22 | |
| AJN-12-08/4 | 1.1/16"X12 | Z1/2"X14 | 35.5 | 31 | 27 | |
| AJN-12/4 | 1.1/16"X12 | Z3/4"X14 | 35.5 | 35 | 27 | |
| AJN-12-16/4 | 1.1/16"X12 | Z1"X11.5 | 37.5 | 39 | 33 | |
| AJN-16/4 | 1.5/16"X12 | Z1"X11.5 | 38.5 | 39 | 33 | |
| AJN-20/4 | 1.5/8"X12 | Z1.1/4"X11.5 | 43 | 42 | 41 | |
| AJN-24/4 | 1.7/8"X12 | Z1.1/2"X11.5 | 49 | 45 | 48 | |
| AJN-32/4 | 2.1/2"X12 | Z2"X11.5 | 58 | 50 | 63 | |
注：螺母及襯套需另行訂貨，配用螺母及襯套分別選用SJN、SJS。
