產品名稱：
公制外螺紋74°/布錐管外螺紋直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述
| 訂貨號 | 螺 紋 | 硬管外徑 | 尺 寸 | |||||||

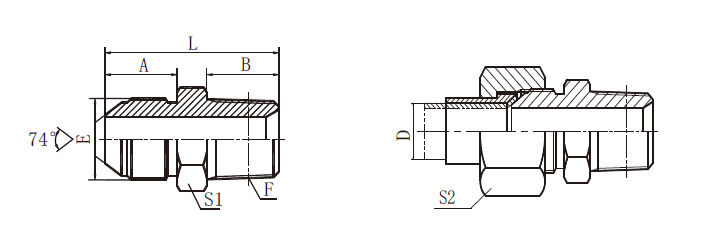

| E | F | D | A | B | L | S1 | S2 | |||
| AQN-12-02 | M12X1.5 | Z1/8"X27 | 6 | 15.7 | 10.5 | 32 | 14 | 14 | ||
| AQN-12-04 | M12X1.5 | Z1/4"X18 | 6 | 15.7 | 15 | 36.5 | 14 | 14 | ||
| AQN-14-02 | M14X1.5 | Z1/8"X27 | 8 | 17 | 10.5 | 33 | 17 | 17 | ||
| AQN-14-04 | M14X1.5 | Z1/4"X18 | 8 | 17 | 15 | 38 | 17 | 17 | ||
| AQN-16-04 | M16X1.5 | Z1/4"X18 | 10 | 18 | 15 | 39 | 17 | 19 | ||
| AQN-16-06 | M16X1.5 | Z3/8"X18 | 10 | 18 | 16 | 40 | 19 | 19 | ||
| AQN-18-04 | M18X1.5 | Z1/4"X18 | 12 | 18 | 15 | 39 | 19 | 22 | ||
| AQN-18-06 | M18X1.5 | Z3/8"X18 | 12 | 18 | 16 | 40 | 19 | 22 | ||
| AQN-18-08 | M18X1.5 | Z1/2"X14 | 12 | 18 | 19.5 | 45.5 | 22 | 22 | ||
| AQN-22-06 | M22X1.5 | Z3/8"X18 | 14 | 19.5 | 16 | 43.5 | 24 | 27 | ||
| AQN-22-08 | M22X1.5 | Z1/2"X14 | 14 | 19.5 | 19.5 | 47 | 24 | 27 | ||
| AQN-27-08 | M27X1.5 | Z1/2"X14 | 18 | 20 | 19.5 | 49.5 | 30 | 32 | ||
| AQN-27-12 | M27X1.5 | Z3/4"X14 | 18 | 20 | 19.5 | 49.5 | 30 | 32 | ||
| AQN-27-16 | M27X1.5 | Z1"X11.5 | 18 | 20 | 25.5 | 56.5 | 36 | 32 | ||
| AQN-30-12 | M30X1.5 | Z3/4"X14 | 20 | 23 | 19.5 | 53.5 | 32 | 36 | ||
| AQN-33-12 | M33X2 | Z3/4"X14 | 22 | 26 | 19.5 | 56.5 | 36 | 38 | ||
| AQN-36-16 | M36X2 | Z1"X11.5 | 25 | 26 | 25.5 | 63 | 41 | 41 | ||
| AQN-39-16 | M39X2 | Z1"X11.5 | 28 | 26 | 25.5 | 64.5 | 41 | 46 | ||
| AQN-45-16 | M45X2 | Z1"X11.5 | 34 | 28.5 | 25.5 | 67 | 46 | 55 | ||
| AQN-45-20 | M45X2 | Z1.1/4"X11.5 | 34 | 28.5 | 26.5 | 68 | 46 | 55 | ||
| AQN-45-24 | M45X2 | Z1.1/2"X11.5 | 34 | 28.5 | 27.5 | 71 | 50 | 55 | ||
| AQN-52-24 | M52X2 | Z1.1/2"X11.5 | 30 | 27.5 | 71 | 55 | 60 | |||
| AQN-64-32 | M52X2 | Z2"X11.5 | 34.5 | 29.5 | 85 | 65 | 75 | |||
注：如需帶襯套及螺母整套訂貨，則請在代號后加/A，如AQN-22-08/A。
