產品名稱:
英管外螺紋60°內錐或六角端面用組合墊密封
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

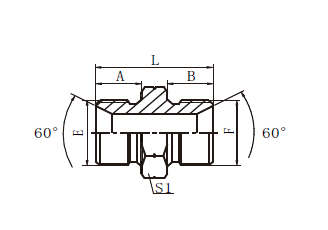

訂貨號 | 螺 紋 | 尺 寸 | |||||
E | F | A | B | L | S1 | ||
A3-02 | G1/8"X28 | G1/8"X28 | 10 | 10 | 26 | 14 | |
A3-02-04 | G1/8"X28 | G1/4"X19 | 10 | 12 | 28 | 19 | |
A3-04 | G1/4"X19 | G1/4"X19 | 12 | 12 | 30 | 19 | |
A3-04-06 | G1/4"X19 | G3/8"X19 | 12 | 13.5 | 33.5 | 22 | |
A3-04-08 | G1/4"X19 | G1/2"X14 | 12 | 16 | 38 | 27 | |
A3-06 | G3/8"X19 | G3/8"X19 | 13.5 | 13.5 | 35 | 22 | |
A3-06-08 | G3/8"X19 | G1/2"X14 | 13.5 | 16 | 39.5 | 27 | |
A3-06-12 | G3/8"X19 | G3/4"X14 | 13.5 | 18.5 | 43 | 32 | |
A3-08 | G1/2"X14 | G1/2"X14 | 16 | 16 | 42 | 27 | |
A3-08-12 | G1/2"X14 | G3/4"X14 | 16 | 18.5 | 45.5 | 32 | |
A3-10 | G5/8"X14 | G5/8"X14 | 17.5 | 17.5 | 45 | 30 | |
A3-12 | G3/4"X14 | G3/4"X14 | 18.5 | 18.5 | 48 | 32 | |
A3-12-16 | G3/4"X14 | G1"X11 | 18.5 | 20.5 | 52.5 | 41 | |
A3-12-20 | G3/4"X14 | G1.1/4"X11 | 18.5 | 20.5 | 56 | 50 | |
A3-16 | G1"X11 | G1"X11 | 20.5 | 20.5 | 54 | 41 | |
A3-16-20 | G1"X11 | G1.1/4"X11 | 20.5 | 20.5 | 58 | 50 | |
A3-16-24 | G1"X11 | G1.1/2"X11 | 20.5 | 23 | 60.5 | 55 | |
A3-20 | G1.1/4"X11 | G1.1/4"X11 | 20.5 | 20.5 | 58 | 50 | |
A3-20-24 | G1.1/4"X11 | G1.1/2"X11 | 20.5 | 23 | 60.5 | 55 | |
A3-24 | G1.1/2"X11 | G1.1/2"X11 | 23 | 23 | 63 | 55 | |
A3-24-32 | G1.1/2"X11 | G2"X11 | 23 | 25.5 | 66.5 | 70 | |
A3-32 | G2"X11 | G2"X11 | 25.5 | 25.5 | 68 | 70 |
