產品名稱：
美制JIC外螺紋/SAE外螺紋 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列

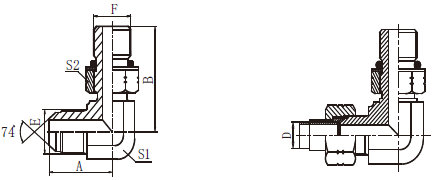

產品描述
| 訂貨號 | 螺 紋 | O形圈 | 尺 寸 | ||||
| E | F | F端 | A | B | S1 | S2 | |
| AJ8-04/9 | 7/16"X20 | 7/16"X20 | O904 | 24.5 | 27.2 | 11 | 17 |
| AJ8-04-06/9 | 7/16"X20 | 9/16"X18 | O906 | 26.6 | 31.8 | 14 | 19 |
| AJ8-05/9 | 1/2"X20 | 1/2"X20 | O905 | 26.6 | 29 | 14 | 17 |
| AJ8-06-04/9 | 9/16"X18 | 7/16"X20 | O904 | 26.9 | 30 | 14 | 17 |
| AJ8-06/9 | 9/16"X18 | 9/16"X18 | O906 | 26.9 | 31.8 | 14 | 19 |
| AJ8-06-08/9 | 9/16"X18 | 3/4"X16 | O908 | 30 | 36.8 | 19 | 24 |
| AJ8-08-06/9 | 3/4"X16 | 9/16"X18 | O906 | 33 | 33.5 | 19 | 19 |
| AJ8-08/9 | 3/4"X16 | 3/4"X16 | O908 | 33 | 36.8 | 19 | 24 |
| AJ8-08-10/9 | 3/4"X16 | 7/8"X14 | O910 | 34.8 | 44 | 22 | 27 |
| AJ8-10-08/9 | 7/8"X14 | 3/4"X16 | O908 | 38 | 40 | 22 | 27 |
| AJ8-10/9 | 7/8"X14 | 7/8"X14 | O910 | 37.8 | 44 | 22 | 27 |
| AJ8-12-08/9 | 1.1/16"X12 | 3/4"X16 | O908 | 45 | 44 | 27 | 24 |
| AJ8-12-10/9 | 1.1/16"X12 | 7/8"X14 | O910 | 44.2 | 47 | 27 | 27 |
| AJ8-12/9 | 1.1/16"X12 | 1.1/16"X12 | O912 | 44.2 | 51 | 27 | 32 |
| AJ8-16-12/9 | 1.5/16"X12 | 1.1/16"X12 | O912 | 48.8 | 54.5 | 33 | 32 |
| AJ8-16/9 | 1.5/16"X12 | 1.5/16"X12 | O916 | 48.8 | 54.5 | 33 | 41 |
| AJ8-20-16/9 | 1.5/8"X12 | 1.5/16"X12 | O916 | 55.5 | 59.5 | 41 | 41 |
| AJ8-20/9 | 1.5/8"X12 | 1.5/8"X12 | O920 | 55.3 | 59 | 41 | 50 |
| AJ8-24/9 | 1.7/8"X12 | 1.7/8"X12 | O924 | 62.5 | 63 | 48 | 55 |
| AJ8-32/9 | 2.1/2"x12 | 2.1/2"x12 | O932 | 80 | 76 | 63 | 70 |
注： 螺母及襯套需另行訂貨，配用螺母及襯套分別選用SJN、SJS。
