產品名稱：
美制JIC外螺紋/SAE外螺紋 45°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

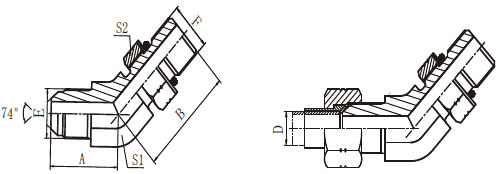

| 訂貨號 | 螺 紋 | O形圈 | 尺 寸 | ||||
| E | F | F端 | A | B | S1 | S2 | |
| AJ8-04/4 | 7/16"X20 | 7/16"X20 | O904 | 21 | 24 | 11 | 17 |
| AJ8-05/4 | 1/2"X20 | 1/2"X20 | O905 | 22 | 26.7 | 14 | 17 |
| AJ8-06/4 | 9/16"X18 | 9/16"X18 | O906 | 23.5 | 28 | 14 | 19 |
| AJ8-06-04/4 | 9/16"X18 | 7/16"X20 | O904 | 22.8 | 26 | 14 | 17 |
| AJ8-08/4 | 3/4"X16 | 3/4"X16 | O908 | 25.8 | 32.5 | 19 | 24 |
| AJ8-10/4 | 7/8"X14 | 7/8"X14 | O910 | 29.5 | 38.7 | 22 | 27 |
| AJ8-12/4 | 1.1/16"X12 | 1.1/16"X12 | O912 | 34 | 43.5 | 27 | 32 |
| AJ8-12-10/4 | 1.1/16"X12 | 7/8"X14 | O910 | 34 | 42 | 27 | 27 |
| AJ8-16/4 | 1.5/16"X12 | 1.5/16"X12 | O916 | 38 | 45.5 | 33 | 41 |
| AJ8-16-12/4 | 1.5/16"X12 | 1.1/16"X12 | O912 | 38 | 45 | 33 | 32 |
| AJ8-20/4 | 1.5/8"X12 | 1.5/8"X12 | O920 | 42 | 48.5 | 41 | 50 |
| AJ8-24/4 | 1.7/8"X12 | 1.7/8"X12 | O924 | 48 | 50 | 48 | 55 |
| AJ8-32/4 | 2.1/2"X12 | 2.1/2"X12 | O932 | 58 | 54 | 63 | 70 |
注： 螺母及襯套需另行訂貨，配用螺母及襯套分別選用SJN、SJS。
