產品名稱：
美制JIC外螺紋/SAE外螺紋直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

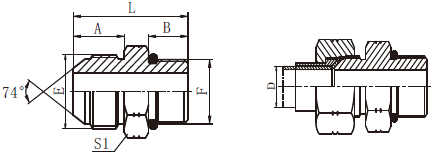

| 訂貨號 | 螺 紋 | O形圈 | 尺 寸 | ||||
| E | F | F端 | A | B | L | S1 | |
| AJ8-04 | 7/16"X20 | 7/16"X20 | O904 | 14 | 9.14 | 29 | 14 |
| AJ8-04-05 | 7/16"X20 | 1/2"X20 | O905 | 14 | 9.14 | 29 | 17 |
| AJ8-04-06 | 7/16"X20 | 9/16"X18 | O906 | 14 | 9.93 | 30 | 17 |
| AJ8-04-08 | 7/16"X20 | 3/4"X16 | O908 | 14 | 11.13 | 33 | 22 |
| AJ8-05 | 1/2"X20 | 1/2"X20 | O905 | 14 | 9.14 | 29 | 17 |
| AJ8-06-04 | 9/16"X18 | 7/16"X20 | O904 | 14.1 | 9.14 | 29 | 17 |
| AJ8-06-05 | 9/16"X18 | 1/2"X20 | O905 | 14.1 | 9.14 | 29.5 | 17 |
| AJ8-06-08 | 9/16"X18 | 3/4"X16 | O908 | 14.1 | 11.13 | 33 | 22 |
| AJ8-08 | 3/4"X16 | 3/4"X16 | O908 | 16.7 | 11.13 | 36 | 22 |
| AJ8-08-06 | 3/4"X16 | 9/16"X18 | O906 | 16.7 | 9.93 | 35 | 22 |
| AJ8-08-10 | 3/4"X16 | 7/8"X14 | O910 | 16.7 | 12.7 | 40 | 27 |
| AJ8-08-12 | 3/4"X16 | 1.1/16"X12 | O912 | 16.7 | 15.09 | 43 | 32 |
| AJ8-10 | 7/8"X14 | 7/8"X14 | O910 | 19.3 | 12.7 | 42.5 | 27 |
| AJ8-10-08 | 7/8"X14 | 3/4"X16 | O908 | 19.3 | 11.13 | 39 | 24 |
| AJ8-10-12 | 7/8"X14 | 1.1/16"X12 | O912 | 19.3 | 15.09 | 45.5 | 32 |
| AJ8-12 | 1.1/16"X12 | 1.1/16"X12 | O912 | 21.9 | 15.09 | 48 | 32 |
| AJ8-12-10 | 1.1/16"X12 | 7/8"X14 | O910 | 21.9 | 12.7 | 45 | 30 |
| AJ8-12-16 | 1.1/16"X12 | 1.5/16"X12 | O916 | 21.9 | 15.09 | 48 | 38 |
| AJ8-16 | 1.5/16"X12 | 1.5/16"X12 | O916 | 23.1 | 15.09 | 49 | 38 |
| AJ8-16-12 | 1.5/16"X12 | 1.1/16"X12 | O912 | 23.1 | 15.09 | 49 | 36 |
| AJ8-16-20 | 1.5/16"X12 | 1.5/8"X12 | O920 | 23.1 | 15.09 | 53 | 50 |
| AJ8-20 | 1.5/8"X12 | 1.5/8"X12 | O920 | 24.3 | 15.09 | 54.5 | 50 |
| AJ8-20-16 | 1.5/8"X12 | 1.5/16"X12 | O916 | 24.3 | 15.09 | 52.5 | 46 |
| AJ8-20-24 | 1.5/8"X12 | 1.7/8"X12 | O924 | 24.3 | 15.09 | 54.5 | 55 |
| AJ8-24 | 1.7/8"X12 | 1.7/8"X12 | O924 | 27.5 | 15.09 | 57.5 | 55 |
| AJ8-32 | 2.1/2"X12 | 2.1/2"X12 | O932 | 33.9 | 15.09 | 66 | 70 |
注：螺母及襯套需另行訂貨，配用螺母及襯套分別選用SJN、SJS。
