產品名稱：
布錐管外螺紋/美制NPSM內螺紋直接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

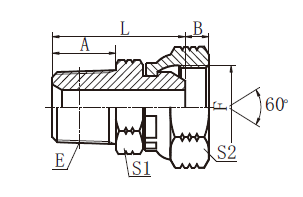

| 訂貨號 | 螺 紋 | 尺 寸 | |||||||||
| E | F | A | B | L | S1 | S2 | |||||
| BNU-02 | Z1/8"X27 | 1/8"X27 | 10.5 | 3.5 | 25.5 | 12 | 15 | ||||
| BNU-02-04 | Z1/8"X27 | 1/4"X18 | 10.5 | 4.6 | 27.5 | 12 | 19 | ||||
| BNU-04 | Z1/4"X18 | 1/4"X18 | 15 | 4.6 | 32 | 17 | 19 | ||||
| BNU-04-06 | Z1/4"X18 | 3/8"X18 | 15 | 6 | 33 | 17 | 22 | ||||
| BNU-06 | Z3/8"X18 | 3/8"X18 | 16 | 6 | 34.5 | 19 | 22 | ||||
| BNU-06-04 | Z3/8"X18 | 1/4"X18 | 16 | 4.6 | 33 | 19 | 19 | ||||
| BNU-06-08 | Z3/8"X18 | 1/2"X14 | 16 | 7.5 | 36 | 19 | 27 | ||||
| BNU-08 | Z1/2"X14 | 1/2"X14 | 19.5 | 7.5 | 41.5 | 22 | 27 | ||||
| BNU-08-06 | Z1/2"X14 | 3/8"X18 | 19.5 | 6 | 39.5 | 22 | 22 | ||||
| BNU-12 | Z3/4"X14 | 3/4"X14 | 19.5 | 8.9 | 44.5 | 30 | 32 | ||||
| BNU-12-08 | Z3/4"X14 | 1/2"X14 | 19.5 | 7.5 | 43.5 | 30 | 27 | ||||
| BNU-12-16 | Z3/4"X14 | 1"X11.5 | 19.5 | 10.5 | 46.5 | 32 | 41 | ||||
| BNU-16-12 | Z1"X11.5 | 3/4"X14 | 21.5 | 8.9 | 51.5 | 36 | 32 | ||||
| BNU-16 | Z1"X11.5 | 1"X11.5 | 25.5 | 10.5 | 52.5 | 36 | 41 | ||||
| BNU-20 | Z1.1/4"X11.5 | 1.1/4"X11.5 | 26.5 | 11.2 | 59.5 | 46 | 50 | ||||
| BNU-20-24 | Z1.1/4"X11.5 | 1.1/2"X11.5 | 26.5 | 11.2 | 59.5 | 46 | 55 | ||||
| BNU-24 | Z1.1/2"X11.5 | 1.1/2"X11.5 | 27.5 | 11.2 | 62.5 | 50 | 55 | ||||
| BNU-32 | Z2"X11.5 | 2"X11.5 | 27.5 | 11.2 | 64.5 | 65 | 70 | ||||
