產品名稱：
美制JIC外螺紋/英管外螺紋O形圈 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列

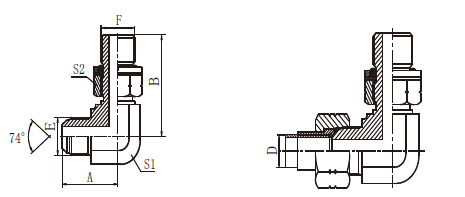

產品描述
| 訂貨號 | 螺 紋 | O形圈 | 尺 寸 | ||||
| E | F | F端 | A | B | S1 | S2 | |
| AJ5-04-06/9 | 7/16"X20 | G3/8"X19 | O113 | 27.5 | 36.8 | 16 | 22 |
| AJ5-04/9 | 7/16"X20 | G1/4"X19 | O111 | 26.6 | 31.3 | 14 | 19 |
| AJ5-05-06/9 | 1/2"X20 | G3/8"X19 | O113 | 27.5 | 35.8 | 16 | 22 |
| AJ5-06-04/9 | 9/16"X18 | G1/4"X19 | O111 | 26.9 | 31.3 | 14 | 19 |
| AJ5-06-08/9 | 9/16"X18 | G1/2"X14 | O115 | 32.5 | 43.2 | 22 | 27 |
| AJ5-06/9 | 9/16"X18 | G3/8"X19 | O113 | 28.5 | 35.8 | 16 | 22 |
| AJ5-08-04/9 | 3/4"X16 | G1/4"X19 | O111 | 32 | 33.5 | 19 | 19 |
| AJ5-08/9 | 3/4"X16 | G1/2"X14 | O115 | 34.8 | 43.2 | 22 | 27 |
| AJ5-08-06/9 | 3/4"X16 | G3/8"X19 | O113 | 32 | 36.8 | 19 | 22 |
| AJ5-08-12/9 | 3/4"X16 | G3/4"X14 | O119 | 37.9 | 49.3 | 27 | 32 |
| AJ5-10-06/9 | 7/8"X14 | G3/8"X19 | O113 | 37.8 | 39.2 | 22 | 22 |
| AJ5-10-08/9 | 7/8"X14 | G1/2"X14 | O115 | 37.8 | 43.2 | 22 | 27 |
| AJ5-10-12/9 | 7/8"X14 | G3/4"X14 | O119 | 41 | 49.3 | 27 | 32 |
| AJ5-12/9 | 1.1/16"X12 | G3/4"X14 | O119 | 44.2 | 49.3 | 27 | 32 |
| AJ5-12-08/9 | 1.1/16"X12 | G1/2"X14 | O115 | 44.2 | 46.5 | 27 | 27 |
| AJ5-12-16/9 | 1.1/16"X12 | G1"X11 | O217 | 48 | 53 | 33 | 41 |
| AJ5-16/9 | 1.5/16"X12 | G1"X11 | O217 | 49 | 53 | 33 | 41 |
| AJ5-16-12/9 | 1.5/16"X12 | G3/4"X14 | O119 | 49 | 53 | 33 | 32 |
| AJ5-20/9 | 1.5/8"X12 | G1.1/4"X11 | O222 | 55.5 | 58 | 41 | 50 |
| AJ5-20-16/9 | 1.5/8"X12 | G1"X11 | O217 | 55.5 | 58 | 41 | 41 |
| AJ5-24-20/9 | 1.7/8"X12 | G1.1/4"X11 | O222 | 62.5 | 63 | 48 | 50 |
| AJ5-24/9 | 1.7/8"X12 | G1.1/2"X11 | O224 | 62.5 | 63 | 48 | 55 |
注：螺母及襯套需另行訂貨，配用螺母及襯套分別選用SJN、SJS。
