產品名稱：
美制JIC外螺紋/英管外螺紋O形圈
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

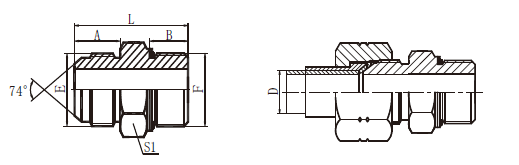

| 訂貨號 | 螺 紋 | O形圈 | 尺 寸 | |||||
| E | F | F端 | A | B | L | S1 | ||
| AJ5-04-02 | 7/16"X20 | G1/8"X28 | O011 | 14 | 9.5 | 31 | 14 | |
| AJ5-04 | 7/16"X20 | G1/4"X19 | O111 | 14 | 10 | 32.5 | 19 | |
| AJ5-04-06 | 7/16"X20 | G3/8"X19 | O113 | 14 | 11.5 | 34 | 22 | |
| AJ5-06-04 | 9/16"X18 | G1/4"X19 | O111 | 14.1 | 11 | 31.5 | 19 | |
| AJ5-06 | 9/16"X18 | G3/8"X19 | O113 | 14.1 | 11.5 | 34 | 22 | |
| AJ5-06-08 | 9/16"X18 | G1/2"X14 | O115 | 14.1 | 14 | 39 | 27 | |
| AJ5-08-06 | 3/4"X16 | G3/8"X19 | O113 | 16.7 | 11.5 | 37 | 22 | |
| AJ5-08 | 3/4"X16 | G1/2"X14 | O115 | 16.7 | 14 | 42 | 27 | |
| AJ5-08-12 | 3/4"X16 | G3/4"X14 | O119 | 16.7 | 15.5 | 44 | 32 | |
| AJ5-10-06 | 7/8"X14 | G3/8"X19 | O113 | 19.3 | 11.5 | 39.5 | 24 | |
| AJ5-10-08 | 7/8"X14 | G1/2"X14 | O115 | 19.3 | 14 | 44.5 | 27 | |
| AJ5-10-12 | 7/8"X14 | G3/4"X14 | O119 | 19.3 | 15.5 | 48.5 | 32 | |
| AJ5-12-08 | 1.1/16"X12 | G1/2"X14 | O115 | 22 | 14 | 49 | 30 | |
| AJ5-12 | 1.1/16"X12 | G3/4"X14 | O119 | 22 | 15.5 | 49.5 | 32 | |
| AJ5-12-16 | 1.1/16"X12 | G1"X11 | O217 | 22 | 18 | 54 | 41 | |
| AJ5-16-12 | 1.5/16"X12 | G3/4"X14 | O119 | 23 | 15.5 | 52.5 | 36 | |
| AJ5-16 | 1.5/16"X12 | G1"X11 | O217 | 23 | 18 | 55 | 41 | |
| AJ5-16-20 | 1.5/16"X12 | G1.1/4"X11 | O222 | 23 | 20 | 58 | 50 | |
| AJ5-20-16 | 1.5/8"X12 | G1"X11 | O217 | 24.3 | 18 | 58 | 46 | |
| AJ5-20 | 1.5/8"X12 | G1.1/4"X11 | O222 | 24.3 | 20 | 59.5 | 50 | |
| AJ5-24-16 | 1.7/8"X12 | G1"X11 | O217 | 27.5 | 18 | 63.5 | 50 | |
| AJ5-24 | 1.7/8"X12 | G1.1/2"X11 | O224 | 27.5 | 21.5 | 64 | 55 | |
注：螺母及襯套需另行訂貨，配用螺母及襯套分別選用套分別選用SJN、SJS。
